| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,074 pcs
|
13074 pcs | On Request | 1 | On Request | On Request | 1440+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Power Dissipation | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |
The BZX84-B30 is a 30V Zener diode from Nexperia USA Inc., part of the BZX84B series of surface-mount Zener diodes. It provides a nominal Zener voltage of 30V with 2% tolerance, measured at a test current of 2mA. Maximum power dissipation is 350mW, making it suitable for low-power voltage regulation and reference applications.
The device offers a maximum Zener impedance of 80Ω at 2mA test current and 300Ω at 0.5mA, with a maximum reverse leakage current of 0.05µA at 21V reverse voltage. The temperature coefficient ranges from 24.4 mV/°C to 29.4 mV/°C, providing predictable voltage variation over temperature.

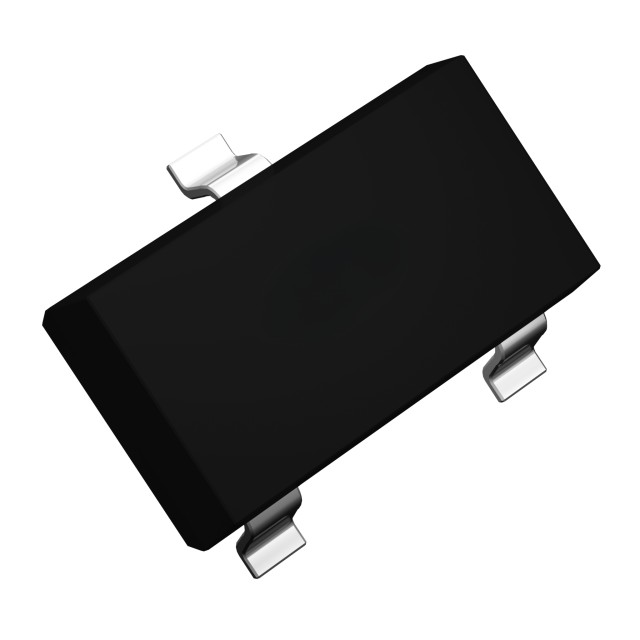

This Zener diode comes in a SOT-23 surface-mount package with gull-wing terminations. It operates over a junction temperature range of -65°C to 150°C, with a thermal resistance of 357°C/W from junction to ambient, and can be stored over the same temperature range.
The component is intended for Zener voltage regulation in low-power electronic circuits, consistent with its BZX84 series designation.
29.4V minimum, 30V nominal, and 30.6V maximum at IZT=2mA.
Maximum power dissipation is 350mW.
SOT-23 surface mount package with gull-wing terminations.
Maximum Zener impedance is 80Ω at IZT=2mA.
Maximum reverse leakage is 0.05µA at VR=21V.
24.4 mV/°C minimum to 29.4 mV/°C maximum.
-65°C to 150°C for both operating junction and storage temperature.
