| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31,020 pcs
|
31020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Impedance (Max) (Zzt) | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Voltage |

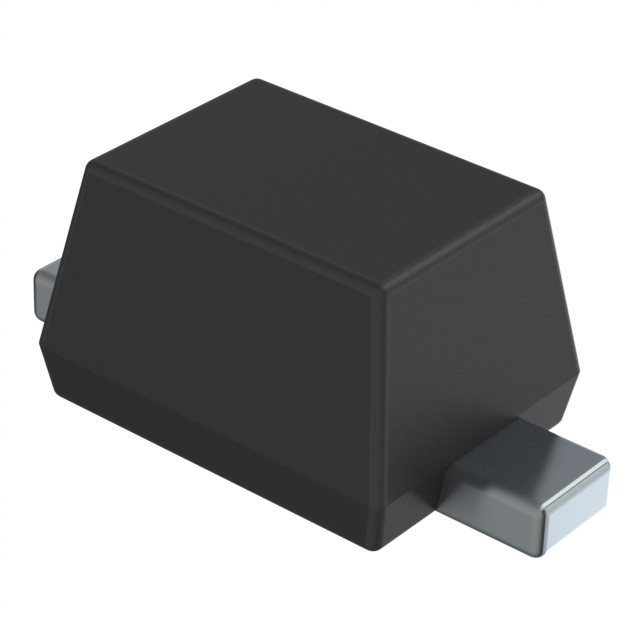

The Nexperia BZX384-B5V6-QX is a low-power voltage regulator diode from the BZX384-Q series. It provides a nominal Zener voltage of 5.6V with a ±2% tolerance, making it suitable for general regulation functions in electronic circuits.
This diode has a maximum total power dissipation of 300mW and a maximum forward voltage of 0.9V at 10mA. It also features a non-repetitive peak reverse power dissipation of up to 40W. The device is housed in a small SOD-323 (SC-76) surface-mount plastic package with 2 leads.
Qualified according to AEC-Q101, this component is recommended for use in automotive applications. Its compact SOD-323 package is ideal for space-constrained designs requiring reliable voltage regulation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
| 10+ | $0.14 | $0.14 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 5.6V.
The Zener voltage tolerance is ±2%.
The maximum total power dissipation is 300mW.
It comes in a surface mount SOD-323 (SC-76) package.
Yes, it is AEC-Q101 qualified.
The maximum forward voltage is 0.9V at a forward current of 10mA.
The maximum reverse leakage current is 1µA at a reverse voltage of 2V.
