| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
124,020 pcs
|
124020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |
The BZX384-B15-QX is a low-power voltage regulator diode from Nexperia, part of the BZX384-Q series. It provides a nominal Zener voltage of 15V with a tolerance of ±2%. The device is designed for general regulation functions in electronic circuits.
Key electrical characteristics include a maximum power dissipation of 300mW at 25°C ambient temperature, a maximum forward voltage of 0.9V at 10mA, and a maximum reverse leakage current of 50nA at 10.5V. The maximum impedance (Zzt) is 30Ω. The operating junction temperature range extends to 150°C.

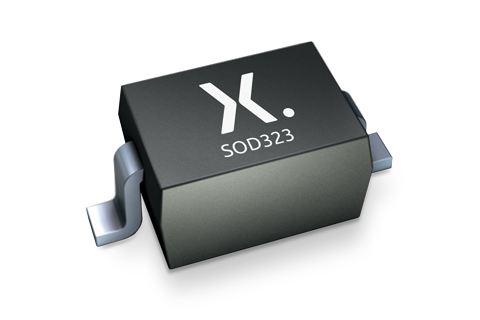

The diode is housed in a surface-mount SOD-323 (SC-76) plastic package, suitable for automated assembly. It is qualified according to AEC-Q101, making it recommended for automotive applications. The series includes 37 breakdown voltages from 2.4V to 75V with multiple tolerance options.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.25 | $0.25 |
| 10+ | $0.14 | $0.14 |
| 100+ | $0.09 | $0.09 |
| 500+ | $0.06 | $0.06 |
| 1,000+ | $0.06 | $0.06 |
| 3,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15V nominal.
±2%.
300mW at 25°C ambient.
0.9V maximum at 10mA.
SOD-323 (SC-76).
Yes, AEC-Q101 qualified.
150°C.
