| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
603,520 pcs
|
603520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Rating | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

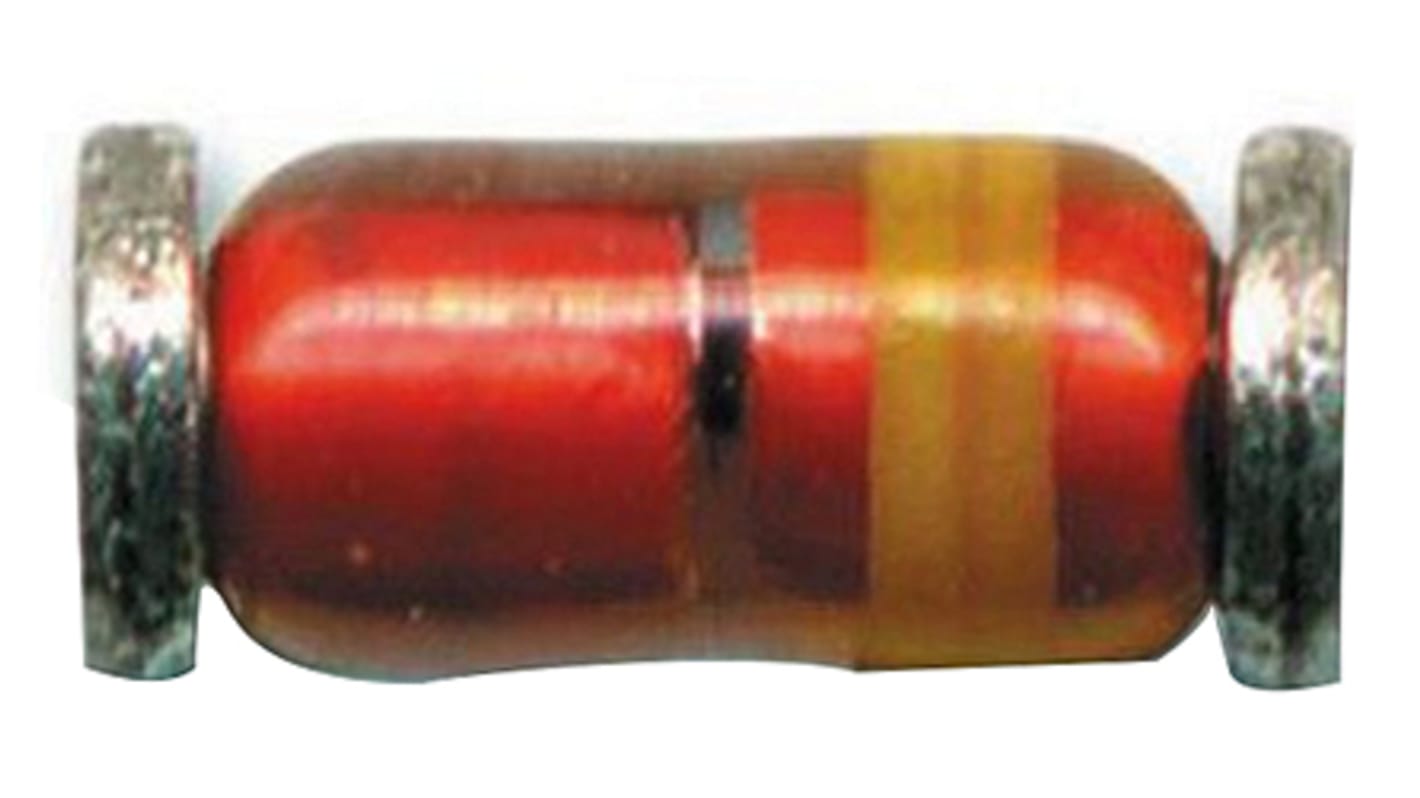

The BZV55-C3V9,115 from Nexperia USA Inc. is a single Zener diode with a nominal zener voltage of 3.9V. It is designed for general purpose voltage regulation and clamping applications. The device offers a power dissipation of 500mW, making it suitable for low-power circuits.
Electrical characteristics include a maximum impedance of 90Ω at the test current, a forward voltage of 900mV at 10mA, and a reverse leakage current of 3µA at 1V. The diode operates over a wide temperature range from -65°C to 200°C.
The component is supplied in a surface mount package compatible with DO-213AC, MINI-MELF, and SOD-80 footprints. The supplier device package is specified as LLDS or MiniMelf. This package allows for automated assembly in high-volume production.
Compliance information is unverified, but the part is listed as RoHS3 compliant, REACH unaffected, and MSL level 1 (unlimited). Designers should verify these ratings with the manufacturer before use in critical applications.
The nominal zener voltage is 3.9V.
The device is rated for 500mW power dissipation.
The forward voltage is 900mV at 10mA.
The tolerance is ±5%.
The operating temperature range is -65°C to 200°C.
It uses a surface mount DO-213AC, MINI-MELF, or SOD-80 package, specified as LLDS or MiniMelf.
The reverse leakage current is 3µA at 1V.
