| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
108,520 pcs
|
108520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

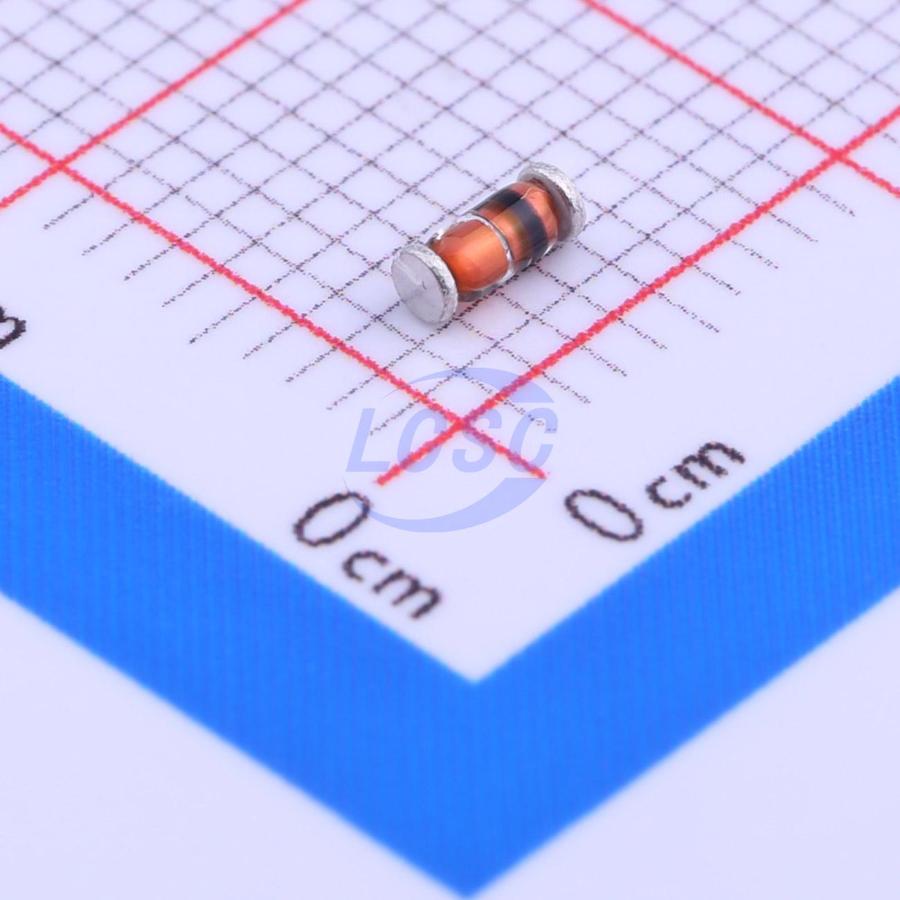

The BZV55-C20,115 is a 20V Zener diode from Nexperia designed for voltage regulation and protection applications. It offers a nominal Zener voltage of 20V with a tolerance of ±5%, ensuring precise voltage clamping. With a maximum power dissipation of 500mW, it is suitable for low-power circuits. The diode features a typical forward voltage of 900mV at 10mA and a maximum reverse leakage current of 50nA at 14V. It operates over a wide temperature range from -65°C to 200°C. The device is housed in a surface-mount DO-213AC (also known as MINI-MELF or SOD-80) package, making it ideal for compact PCB designs. The supplier device package is LLDS; MiniMelf.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
| 10+ | $0.11 | $0.11 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 2,500+ | $0.04 | $0.04 |
| 5,000+ | $0.03 | $0.03 |
| 10,000+ | $0.03 | $0.03 |
| 25,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20V nominal, ±5% tolerance.
900mV typical at 10mA.
Surface mount DO-213AC (MINI-MELF, SOD-80).
500mW maximum.
-65°C to 200°C.
