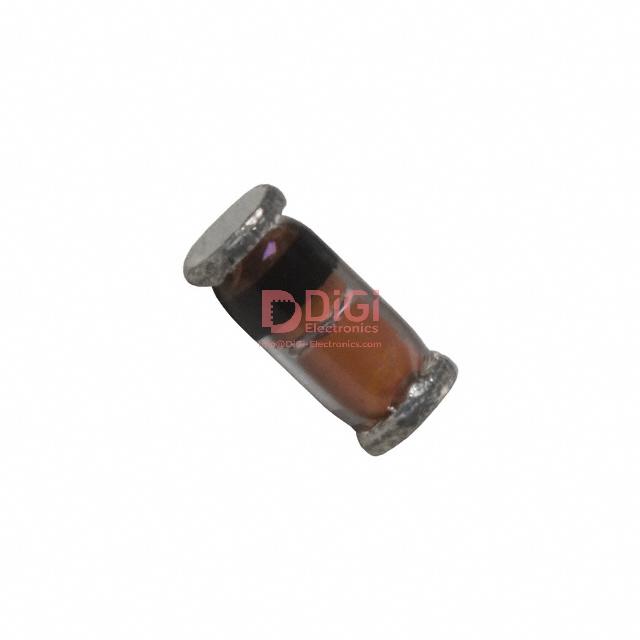

BZV55-C13,115 BZV55-C13,115 is a 13V Zener diode from Nexperia USA Inc. with 500mW power dissipation, ±5% tolerance, and surface mount SOD-80 package.
Mfr Part #:

BZV55-C13,115

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
BZV55-C13,115 is a 13V Zener diode from Nexperia USA Inc. with 500mW power dissipation, ±5% tolerance, and surface mount SOD-80 package.
✓ Total Stock: 438,552 pcs

BZV55-C13,115 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
438,520 pcs
On Request
438520 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZV55-C13,115 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Impedance (Max) (Zzt)
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Power
Power Dissipation (Max)
Storage Temperature
Supplier Device Package
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

BZV55-C13,115 Description

Short technical summary and product information.

The BZV55-C13,115 is a single Zener diode from Nexperia USA Inc., designed for general-purpose voltage regulation and protection applications.



Key electrical specifications include a nominal Zener voltage of 13V with a tolerance of ±5%, maximum power dissipation of 500mW, and a maximum Zener impedance of 30Ω. The forward voltage at 10mA is 900mV, and maximum reverse leakage current at 8V is 100nA.



The device is housed in a DO-213AC, MINI-MELF, SOD-80 package and is supplied in a surface mount form. It supports an operating temperature range of -65°C to 200°C.

BZV55-C13,115 Quick Information

Product Type: Zener Diode
Series: BZV55
Canonical Name: BZV55-C13,115 Zener Diode 13V 500mW ±5% Surface Mount
Subcategory: Single Zener Diode

BZV55-C13,115 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

BZV55-C13,115 Features

  • 13V nominal Zener voltage with 5% tolerance.
  • 500mW maximum power dissipation capability.
  • Surface mount SOD-80 package design.
  • 30Ω maximum Zener impedance rating.

BZV55-C13,115 Applications

  • Voltage regulation in compact circuits.
  • Overvoltage protection for sensitive components.
  • Reference voltage generation in analog designs.

BZV55-C13,115 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of BZV55-C13,115?

The nominal Zener voltage is 13V.

What is the power dissipation rating?

Maximum power dissipation is 500mW.

What package does this diode come in?

It comes in DO-213AC, MINI-MELF, SOD-80 package for surface mount.

What is the forward voltage at 10mA?

The maximum forward voltage at 10mA is 900mV.

What is the maximum reverse leakage current?

Maximum reverse leakage current is 100nA at 8V reverse voltage.

What is the Zener impedance?

Maximum Zener impedance is 30Ω.

What is the operating temperature range?

Operating temperature range is -65°C to 200°C.
