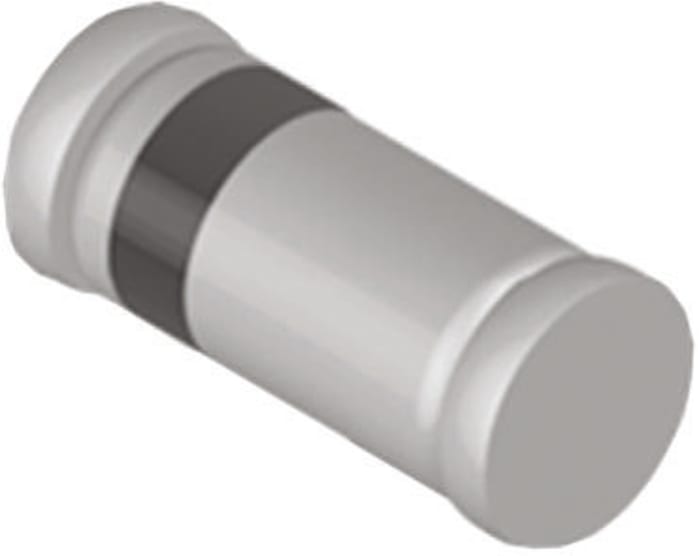

BZV55-B5V6,115 Nexperia BZV55-B5V6,115 is a 5.6V Zener diode with ±2% tolerance and 500mW power dissipation. Surface mount package LLDS/MiniMelf.
Mfr Part #:

BZV55-B5V6,115

Available from 3 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
Nexperia BZV55-B5V6,115 is a 5.6V Zener diode with ±2% tolerance and 500mW power dissipation. Surface mount package LLDS/MiniMelf.
✓ Total Stock: 446,023 pcs

BZV55-B5V6,115 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
443,520 pcs
On Request
443520 pcs On Request 1 On Request On Request On Request On Request On Request
Flip Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZV55-B5V6,115 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Current
Impedance (Max) (Zzt)
Mounting Type
Operating Temperature
Package / Case
Power
Supplier Device Package
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

BZV55-B5V6,115 Description

Short technical summary and product information.

The Nexperia BZV55-B5V6,115 is a single Zener diode designed for voltage regulation and clamping applications. It offers a nominal Zener voltage of 5.6V with a tight ±2% tolerance, ensuring precise voltage reference. The device can dissipate up to 500mW of power, making it suitable for low-power circuits.



Electrical characteristics include a maximum impedance of 40 Ω at the Zener test current, a reverse leakage current of 1 µA at 2V reverse voltage, and a forward voltage of 900mV at 10mA forward current. The diode operates over a wide temperature range from -65°C to 200°C.



The component is housed in a surface-mount DO-213AC / MINI-MELF / SOD-80 package, also referred to as LLDS or MiniMelf. It is supplied in tape and reel packaging for automated assembly. The mounting type is surface mount.

BZV55-B5V6,115 Quick Information

Product Type: Zener Diode
Series: BZV55
Canonical Name: Nexperia BZV55-B5V6,115 Zener Diode, 5.6V, 500mW, Surface Mount, LLDS/MiniMelf
Subcategory: Single Zener Diode

BZV55-B5V6,115 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BZV55-B5V6,115 Features

  • Nominal Zener voltage of 5.6V.
  • Tight ±2% tolerance for precision.
  • 500mW maximum power dissipation.
  • Surface mount LLDS/MiniMelf package.
  • Wide operating temperature -65°C to 200°C.

BZV55-B5V6,115 Applications

  • Voltage regulation in low-power circuits.
  • Voltage reference for analog designs.
  • Overvoltage protection in portable devices.
  • Clamping in signal conditioning circuits.

BZV55-B5V6,115 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of BZV55-B5V6,115?

The nominal Zener voltage is 5.6V.

What is the power rating of this Zener diode?

The maximum power dissipation is 500mW.

What is the tolerance of the Zener voltage?

The tolerance is ±2%.

What is the package type for BZV55-B5V6,115?

The package is DO-213AC, MINI-MELF, SOD-80 (also known as LLDS or MiniMelf).

What is the maximum forward voltage?

The maximum forward voltage is 900mV at 10mA forward current.

What is the reverse leakage current?

The maximum reverse leakage current is 1µA at 2V reverse voltage.

What is the operating temperature range?

The operating temperature range is -65°C to 200°C.
