| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
241,020 pcs
|
241020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,790 pcs
|
2790 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
888 pcs
|
888 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Impedance (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation | |
| Reverse Leakage Current | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage | |
| Zener Voltage (Nominal) |

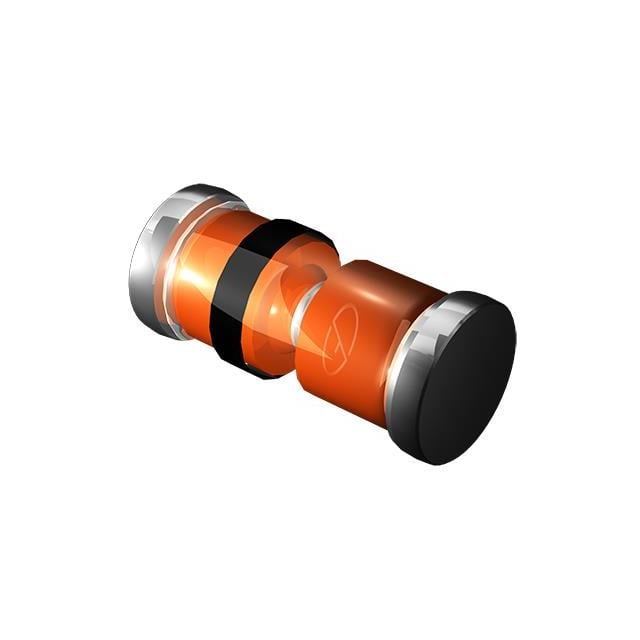

The Nexperia BZV55-B15,115 is a single Zener diode designed for voltage regulation and clamping applications. It offers a nominal Zener voltage of 15V with a tight ±2% tolerance, ensuring consistent performance. The device can dissipate up to 500mW of power, making it suitable for low-power voltage reference and protection circuits.
Electrical characteristics include a maximum impedance (Zzt) of 30Ω and a reverse leakage current of 50nA at 10.5V. The forward voltage is 900mV at 10mA. The diode operates over a wide temperature range from -65°C to 200°C, providing reliability in harsh environments.
The BZV55-B15,115 is offered in a DO-213AC / MiniMELF / SOD-80 surface-mount package (supplier device package LLDS; MiniMelf), which is ideal for automated assembly and space-constrained designs.
The nominal Zener voltage is 15V with a tolerance of ±2%.
The maximum power dissipation is 500mW.
It is available in a surface-mount DO-213AC / MiniMELF / SOD-80 package (supplier device package LLDS; MiniMelf).
The operating temperature range is -65°C to 200°C.
The maximum reverse leakage current is 50nA at a reverse voltage of 10.5V.
The maximum forward voltage is 900mV at a forward current of 10mA.
