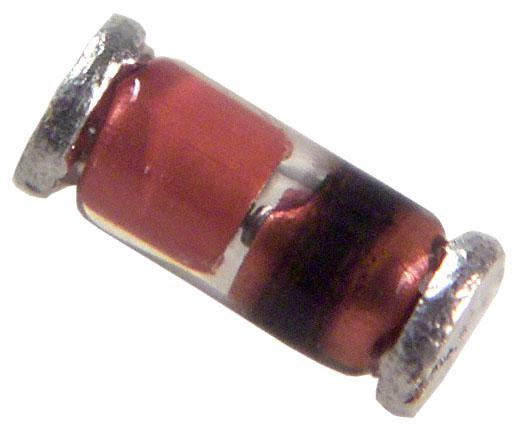

BZV55-B12,115 Zener diode with 12V nominal voltage, 500mW power rating, and ±2% tolerance. Surface mount package in DO-213AC / SOD-80.
Mfr Part #:

BZV55-B12,115

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
Zener diode with 12V nominal voltage, 500mW power rating, and ±2% tolerance. Surface mount package in DO-213AC / SOD-80.
✓ Total Stock: 304,500 pcs

BZV55-B12,115 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
303,520 pcs
On Request
303520 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
980 pcs
On Request
980 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZV55-B12,115 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Forward Voltage
Impedance (Max) (Zzt)
Mounting Type
Operating Temperature
Power
Power Dissipation
Supplier Device Package
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

BZV55-B12,115 Description

Short technical summary and product information.

The BZV55-B12,115 is a Zener diode manufactured by Nexperia USA Inc. It provides a nominal Zener voltage of 12V with a tolerance of ±2%, making it suitable for voltage regulation and reference applications. The diode is rated for a power dissipation of 500mW, ensuring reliable operation in low-power circuits. It features a maximum impedance of 25Ω at the Zener voltage and a low reverse leakage current of 100nA at 8V. The forward voltage is 900mV at 10mA. The device operates over a wide temperature range from -65°C to 200°C. It is offered in a surface mount package, compatible with DO-213AC, MINI-MELF, and SOD-80 footprints. The supplier device package is LLDS / MiniMelf. This Zener diode is designed for general purpose voltage regulation, clamping, and protection in various electronic circuits.

BZV55-B12,115 Quick Information

Product Type: Zener Diode
Series: BZV55
Canonical Name: Zener Diode 12V 500mW, DO-213AC (SOD-80) Surface Mount
Subcategory: Single

BZV55-B12,115 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BZV55-B12,115 Features

  • 12V nominal Zener voltage with ±2% tolerance.
  • 500mW power dissipation rating.
  • Maximum impedance of 25Ω.
  • Low reverse leakage of 100nA at 8V.
  • Surface mount SOD-80 package.

BZV55-B12,115 Applications

  • Voltage regulation in low-power circuits.
  • Reference voltage for analog circuits.
  • Overvoltage protection in portable devices.

BZV55-B12,115 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the BZV55-B12,115?

12V nominal with ±2% tolerance.

What is the tolerance on the Zener voltage?

±2%.

What is the power dissipation rating?

500mW.

What is the forward voltage of this diode?

900mV maximum at 10mA forward current.

What is the package type of the BZV55-B12,115?

Available in DO-213AC, MINI-MELF, and SOD-80 surface mount packages.

What is the operating temperature range?

-65°C to 200°C.

What is the reverse leakage current?

100nA at 8V reverse voltage.
