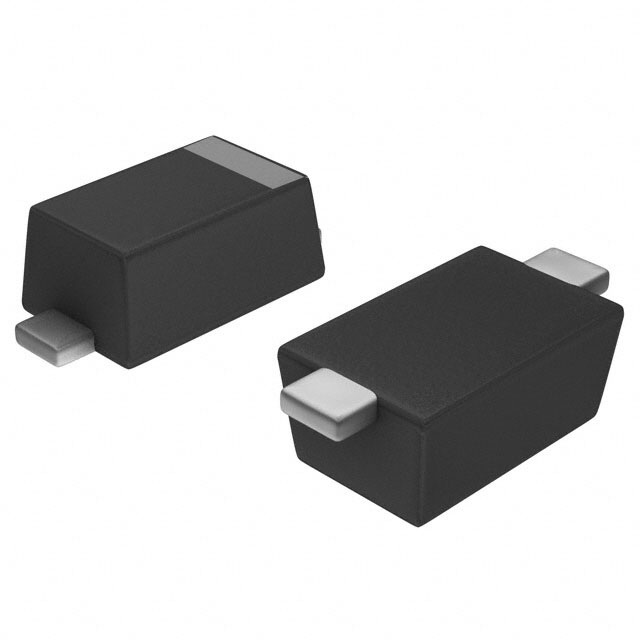

BZT52H-C5V6,115 The BZT52H-C5V6,115 is a 5.6V Zener diode from Nexperia USA Inc. with ±5% tolerance and 375mW power dissipation in a surface mount SOD-123F package.
Mfr Part #:

BZT52H-C5V6,115

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The BZT52H-C5V6,115 is a 5.6V Zener diode from Nexperia USA Inc. with ±5% tolerance and 375mW power dissipation in a surface mount SOD-123F package.
✓ Total Stock: 1,166,020 pcs

BZT52H-C5V6,115 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
1,000,000 pcs
On Request
1000000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Optech Co.,Limited ✓
Non-Authorised Inventory information
166,020 pcs
On Request
166020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BZT52H-C5V6,115 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Forward Voltage
Impedance (Max) (Zzt)
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
Power
Power Dissipation
Supplier Device Package
Tape & Reel
Tolerance
Voltage
View Similar Products (0)

BZT52H-C5V6,115 Description

Short technical summary and product information.

The BZT52H-C5V6,115 is a Zener diode designed for voltage regulation and protection applications. It features a nominal Zener voltage of 5.6V with a tolerance of ±5%, ensuring consistent performance. The device can dissipate up to 375mW of power, making it suitable for low-power circuits.



This Zener diode offers a maximum impedance of 40 Ω at the Zener test current and a low reverse leakage current of 1 µA at 2V reverse voltage. The forward voltage is typically 900 mV at 10 mA forward current. It operates over a wide temperature range from -65°C to 150°C.



The component is housed in a compact SOD-123F surface mount package, which is ideal for automated assembly and space-constrained designs. The surface mount mounting type facilitates efficient PCB integration.

BZT52H-C5V6,115 Quick Information

Product Type: Zener Diode
Series: BZT52H
Canonical Name: BZT52H-C5V6,115 Zener Diode, 5.6V, ±5%, 375mW, SOD-123F
Subcategory: Single Zener Diode

BZT52H-C5V6,115 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BZT52H-C5V6,115 Features

  • 5.6V nominal Zener voltage with ±5% tolerance.
  • 375mW power dissipation for low-power circuits.
  • Surface mount SOD-123F package for compact designs.
  • Wide operating temperature range from -65°C to 150°C.
  • Low reverse leakage current of 1 µA at 2V.

BZT52H-C5V6,115 Applications

  • Voltage regulation in low-power DC circuits.
  • Overvoltage protection for sensitive electronic components.
  • Voltage reference in analog and mixed-signal designs.
  • Clamping and transient suppression in portable devices.

BZT52H-C5V6,115 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of the BZT52H-C5V6,115?

The nominal Zener voltage is 5.6V with a tolerance of ±5%.

What is the power dissipation rating of this Zener diode?

The power dissipation is 375mW.

What package does the BZT52H-C5V6,115 come in?

It comes in a surface mount SOD-123F package.

What is the forward voltage of this diode?

The typical forward voltage is 900 mV at a forward current of 10 mA.

What is the operating temperature range?

The operating temperature range is -65°C to 150°C.
