| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,887 pcs
|
2887 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,730 pcs
|
1730 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Impedance | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tolerance |

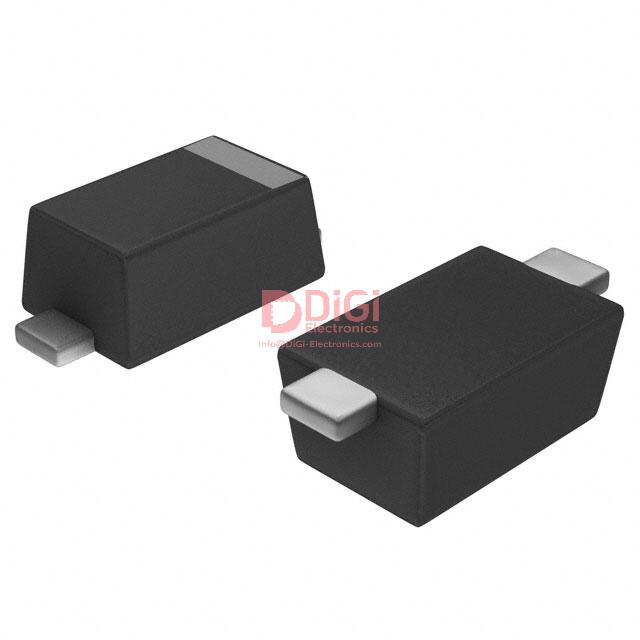

The BZT52H-C15 from Nexperia USA Inc. is a single Zener diode designed for various electronic applications. It features a nominal Zener voltage of 14.7V with a tolerance of ±6.12%, ensuring precise voltage regulation.
This component has a maximum power dissipation rating of 375mW, making it suitable for low-power circuits. The impedance is specified at a maximum of 15 Ohms, and the reverse leakage current is 50 nA at 10.5V. The forward voltage is a maximum of 900mV at 10mA.
Operating at junction temperatures up to 150°C, the BZT52H-C15 is housed in a compact SOD-123F surface mount package. It is supplied on tape and reel, facilitating automated assembly processes. The AEC-Q101 grade indicates suitability for automotive qualification.
This Zener diode is ideal for voltage regulation, voltage clamping, and surge protection applications where a stable reference voltage is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 14.7 V.
The tolerance is ±6.12%.
The maximum power dissipation is 375 mW.
The maximum impedance is 15 Ohms.
The reverse leakage current is 50 nA at 10.5 V.
The maximum forward voltage is 900 mV at 10 mA.
The part is available in a surface-mount SOD-123F package supplied in tape and reel.
