| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70,020 pcs
|
70020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

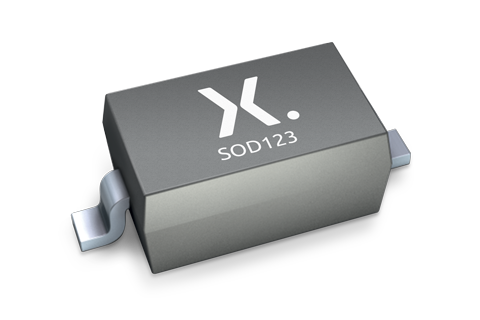

The BZT52-C16-QX is a surface mount Zener diode manufactured by Nexperia USA Inc. It is designed for general purpose voltage regulation and protection applications. The device is housed in a SOD-123 package and supports surface mount assembly. Key electrical characteristics include a power dissipation rating of 350 mW, a maximum forward voltage of 900 mV at 10 mA, and a maximum reverse leakage current of 50 nA at 11.2 V. The differential resistance (Zzt) is specified at 20 Ω maximum. The junction operating temperature is rated up to 150°C. The SOD-123 package offers a compact footprint suitable for space-constrained designs. This Zener diode is suitable for use in voltage clamping, overvoltage protection, and reference voltage circuits. The surface mount package allows for automated assembly and is compatible with standard reflow soldering processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.21 | $0.21 |
| 10+ | $0.12 | $0.12 |
| 100+ | $0.07 | $0.07 |
| 500+ | $0.05 | $0.05 |
| 1,000+ | $0.05 | $0.05 |
| 3,000+ | $0.04 | $0.04 |
| 6,000+ | $0.03 | $0.03 |
| 9,000+ | $0.03 | $0.03 |
| 24,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
350 mW.
900 mV maximum at 10 mA.
50 nA maximum at 11.2 V.
20 Ω maximum.
150°C.
SOD-123 surface mount package.
