| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Lead Style | |
| Length | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature |

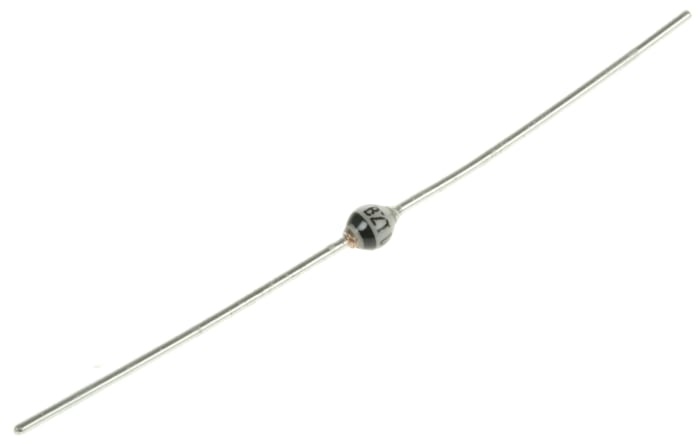

The Vishay BZT03C200 is a single Zener diode designed for voltage regulation and transient suppression applications. It features a nominal Zener voltage of 200V with a tolerance of ±6%. The diode can handle a maximum power dissipation of 3.25W and operates at a test current of 5mA.
This component is suitable for through-hole mounting and comes in a standard SOD-57 package. It has a maximum operating temperature of 175°C and a typical voltage temperature coefficient of 0.09%/°C. The maximum reverse leakage current is 1μA, and the maximum Zener impedance is 500Ω.
Key electrical characteristics include a 2-pin configuration and a typical voltage temperature coefficient. The through-hole mounting makes it suitable for various PCB designs. Its specifications make it a reliable choice for applications requiring stable voltage references or protection against voltage spikes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 200V.
The maximum power dissipation is 3.25W.
The Zener voltage tolerance is ±6%.
The package type is SOD-57, a through-hole package.
The maximum operating temperature is 175°C.
The maximum Zener impedance is 500Ω.
The maximum reverse leakage current is 1μA.
