| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77,020 pcs
|
77020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

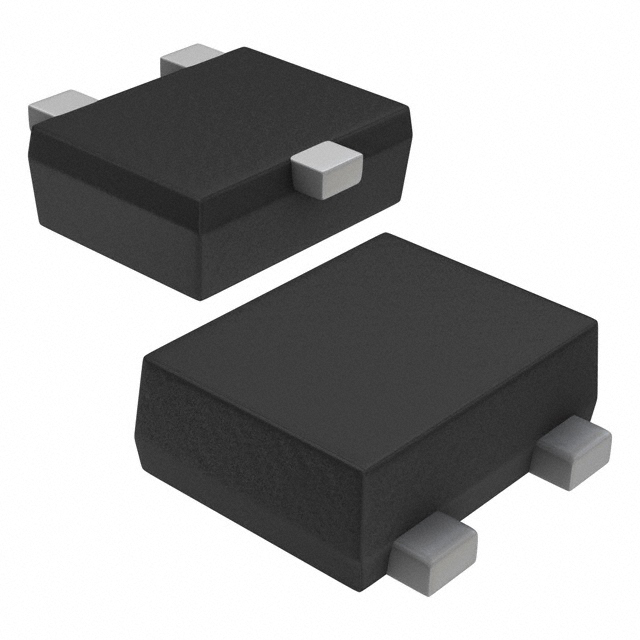

The BZB984-C2V7,115 is a zener diode array from Nexperia USA Inc., designed for voltage regulation and protection in compact electronic circuits. It is configured as one pair of common anode diodes, providing a convenient dual-diode solution in a single SOT-663 surface-mount package.
Key electrical specifications include a maximum power dissipation of 265mWaine, a maximum forward voltage of 900mV at 10mA, and a maximum reverse leakage current of 20µA at 1V. The zener impedance is rated at a maximum of 75Ω, and the zener voltage tolerance is ±5%.
The SOT-663 package is surface-mountable, making it suitable for automated assembly and space-constrained PCB designs. The common anode configuration simplifies circuit layout for applications requiring two zener diodes with a shared anode connection.
This component is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions. It is suitable for a variety of general-purpose voltage regulation and clamping applications in consumer and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.22 | $0.22 |
| 100+ | $0.14 | $0.14 |
| 500+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 2,000+ | $0.08 | $0.08 |
| 4,000+ | $0.07 | $0.07 |
| 8,000+ | $0.06 | $0.06 |
| 24,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum power dissipation is 265mW.
The maximum forward voltage is 900mV at a test current of 10mA.
The maximum reverse leakage current is 20µA at a reverse voltage of 1V.
The maximum zener impedance (Zzt) is 75Ω.
The configuration is 1 pair common anode.
The zener voltage tolerance is ±5%.
The package is SOT-663, surface mount.
