| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,000 pcs
|
17000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Current | |
| Crest Working Reverse Voltage | |
| Current | |
| Forward Voltage (Maximum @ IF = 8 A) | |
| Forward Voltage (Maximum @ not specified) | |
| Junction Temperature | |
| Mounting Type | |
| Non-repetitive Peak Forward Current (Maximum @ tp=10 ms, sinusoidal with reapplied VRRM(max) | |
| Non-repetitive Peak Forward Current (Maximum @ tp=8.3 ms, sinusoidal with reapplied VRRM(max) | |
| Number of Leads | |
| Operating Temperature | |
| Package / Case | |
| Recovery Speed | |
| Repetitive Peak Forward Current | |
| Repetitive Peak Reverse Voltage | |
| Reverse Recovery Time | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The BYV29B-600,118 is an ultrafast epitaxial rectifier diode from WeEn Semiconductors, designed for high-efficiency power conversion applications. It is rated for a maximum repetitive peak reverse voltage of 600V and an average forward current of 9A under square wave conditions. The device offers a low forward voltage drop of typically 1.03V, enabling reduced conduction losses. With a reverse recovery time of only 60ns, it supports fast switching in high-frequency circuits.

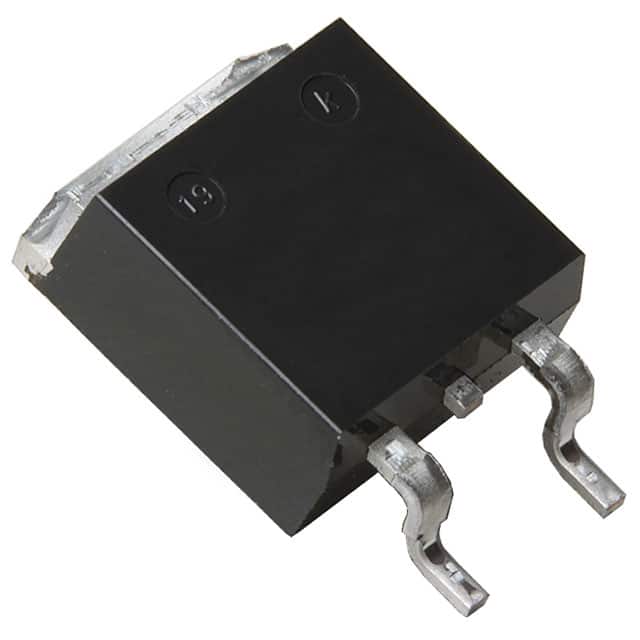

The diode features a soft recovery characteristic and high thermal cycling performance, enhancing reliability in demanding environments. The maximum junction temperature is 150°C, and the non-repetitive peak forward current can reach 70A (10ms) or 77A (8.3ms). The BYV29B-600 is housed in a surface-mount D2PAK (SOT404) package with three leads (one cropped), suitable for automated assembly.
Typical applications include switched-mode power supplies, low-loss rectification, and other power conversion circuits where fast switching and low forward voltage are critical. The device is supplied in tape and reel packaging (quantity not verified). Compliance with RoHS and REACH is unverified, and the MSL level is 1 (unlimited) per existing data.
| Qty | Low | High |
|---|---|---|
| 5,600+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 600V.
The maximum average forward current is 9A under square wave conditions with duty cycle 0.5 and mounting base temperature ≤120°C.
The maximum forward voltage is 1.03V per the datasheet (condition unspecified) and 1.25V at 8A forward current per existing database.
The maximum reverse recovery time is 60ns.
The device is available in a D2PAK (SOT404) surface mount package with 3 leads.
The maximum junction temperature is 150°C.
