| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,020 pcs
|
36020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
3,667 pcs
|
3667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The BUK9875-100A/CUX is an N-channel enhancement mode Field-Effect Transistor (FET) from Nexperia, fabricated using TrenchMOS technology. This logic level device is designed for automotive and general purpose power switching applications, including 12V, 24V, and 42V loads such as motors, lamps, and solenoids.
Key electrical specifications include a drain-source voltage rating of 100V, continuous drain current of 7A at 25°C (4A at 100°C), and maximum drain-source on-state resistance of 72 mOhm at 10V gate drive (84 mOhm at 4.5V). The gate threshold voltage is 2V maximum, enabling direct drive from low voltage logic. The part also features a non-repetitive avalanche energy rating of 49 mJ.

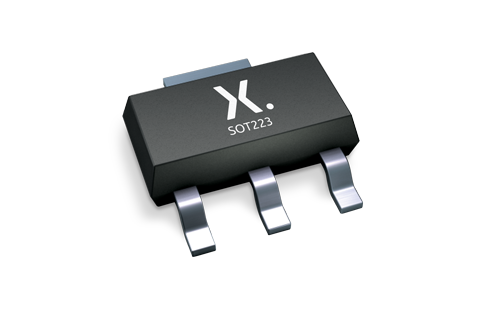

The device is qualified to AEC-Q101 for automotive critical applications and operates over a junction temperature range of -55°C to 150°C. It is supplied in a surface mount SOT-223 (SC-73) package with an increased heatsink, suitable for compact PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 10+ | $0.79 | $0.79 |
| 100+ | $0.52 | $0.52 |
| 500+ | $0.41 | $0.41 |
| 1,000+ | $0.36 | $0.36 |
| 2,000+ | $0.32 | $0.32 |
| 5,000+ | $0.28 | $0.28 |
| 10,000+ | $0.27 | $0.27 |
| 25,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100V.
Surface mount SOT-223 (TO-261-4).
-55°C to 150°C (junction temperature).
The part is listed as RoHS3 compliant, though this has not been independently verified.
72 mOhm maximum at 10V gate drive, 8A drain current.
Yes, it is AEC-Q101 compliant.
Maximum 2V at 1mA drain current.
