| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
193,020 pcs
|
193020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
59,430 pcs
|
59430 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The Nexperia BUK98150-55A/CUF is an N-channel enhancement mode Field-Effect Transistor (FET) using TrenchMOS technology. It is designed for logic level gate drive sources and is qualified to AEC standards for automotive applications.
Key electrical specifications include a maximum drain-source voltage of 55V, a continuous drain current of 5.5A at 25°C, and a maximum power dissipation of 8W. The device features a low on-state resistance, with a maximum of 137mΩ at VGS=10V and ID=5A, and 150mΩ at VGS=5V. The gate charge is 5.3nC maximum, enabling efficient switching.

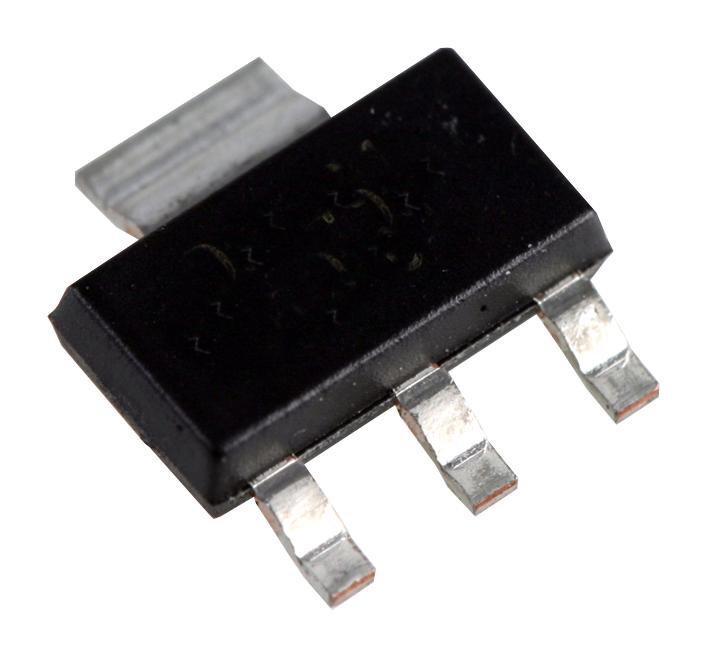

The BUK98150-55A/CUF is housed in an SC-73 (SOT223) surface mount package with 4 leads. It is suitable for 12V and 24V loads, automotive power switching, and driving motors, lamps, and solenoids.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
| 10+ | $0.36 | $0.36 |
| 100+ | $0.23 | $0.23 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.15 | $0.15 |
| 2,000+ | $0.14 | $0.14 |
| 4,000+ | $0.11 | $0.11 |
| 8,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (VDS) is 55V.
The maximum continuous drain current is 5.5A at Tc=25°C with VGS=5V.
It is available in an SC-73 (SOT223) surface mount package.
The operating junction temperature range is -55°C to 150°C.
RoHS compliance is listed as RoHS3 Compliant, but this is unverified and should be confirmed.
The maximum on-resistance is 150mΩ at VGS=5V and ID=5A.
The maximum gate charge is 5.3nC at VGS=5V.
