| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,020 pcs
|
7020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |
The BUK7K6R8-40E,115 is a dual N-channel MOSFET manufactured by Nexperia, utilizing TrenchMOS technology. It is designed for high-performance automotive applications and is AEC Q101 qualified. The device features a maximum drain-source voltage of 40 V and a continuous drain current of 40 A at VGS = 10 V and Tmb = 25°C. The drain-source on-state resistance is typically 5.8 mΩ and maximum 6.8 mΩ at VGS = 10 V, ID = 20 A, and Tj = 25°C.
This MOSFET is rated for operation over a junction temperature range of -55°C to 175°C, making it suitable for thermally demanding environments. It is repetitive avalanche rated and has a true standard level gate with a threshold voltage greater than 1 V at 175°C. The total gate charge is 28.9 nC maximum, and the input capacitance is 1947 pF maximum at Vds = 25 V.

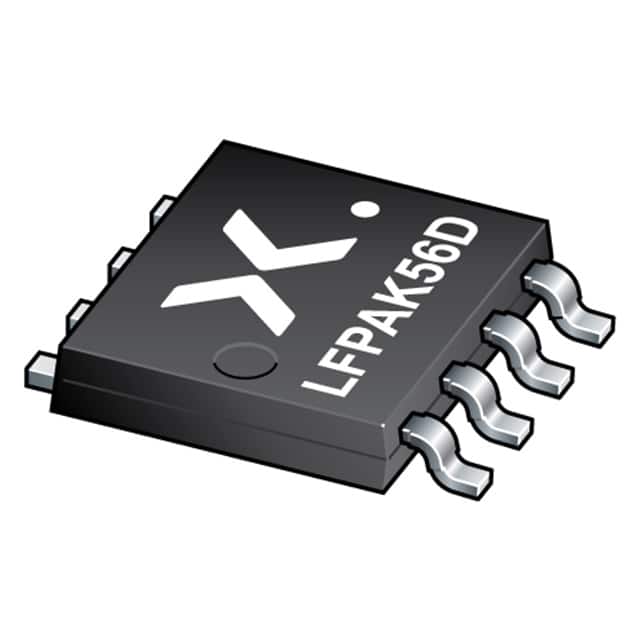

The device is housed in an LFPAK56D (SOT-1205) surface-mount package, which provides efficient thermal performance and space savings. Typical applications include 12 V automotive systems, motor, lamp, and solenoid control, transmission control, and ultra high performance power switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.87 | $1.87 |
| 10+ | $1.19 | $1.19 |
| 100+ | $0.80 | $0.80 |
| 500+ | $0.63 | $0.63 |
| 1,000+ | $0.62 | $0.62 |
| 1,500+ | $0.59 | $0.59 |
| 9,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 V maximum.
40 A at VGS = 10 V, Tmb = 25°C.
Typical 5.8 mΩ, maximum 6.8 mΩ at VGS = 10 V, ID = 20 A, Tj = 25°C.
-55°C to 175°C.
SOT-1205, 8-LFPAK56 package.
RoHS3 compliant (unverified).
Maximum 4 V at Id = 1 mA.
