| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,788 pcs
|
1788 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Power Dissipation |

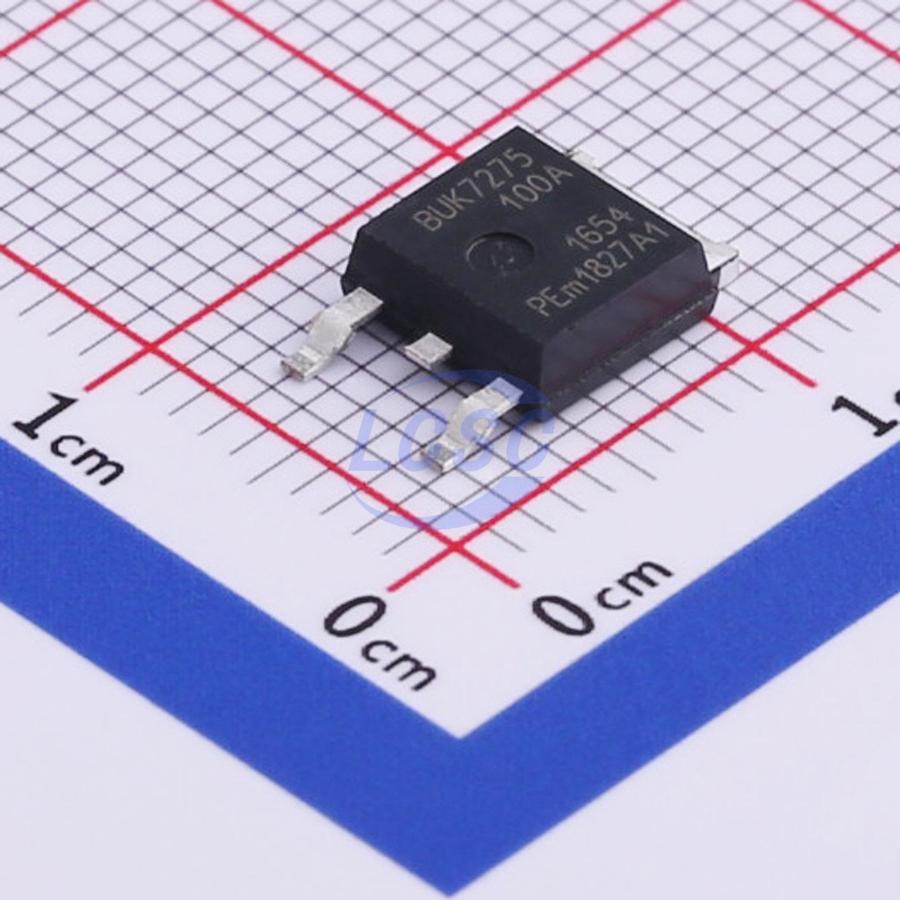

The Nexperia BUK7275-100A is a high-performance N-Channel MOSFET designed for power switching applications. It features a robust 100V drain-source breakdown voltage and a continuous drain current capability of up to 75A at 25°C case temperature.
With a low typical on-state resistance (RDS(on)) of 62 mΩ at VGS = 10V and ID = 25A, this MOSFET offers efficient power handling. The typical gate threshold voltage (VGS(th)) is 2.6V, facilitating easy drive characteristics. The device operates across a wide temperature range from -55°C to 175°C.
Packaged in a standard TO-220-3 configuration, the BUK7275-100A is designed for through-hole mounting, making it suitable for various industrial and automotive applications requiring reliable power control. Its maximum power dissipation is rated at 200W at 25°C.
This MOSFET is RoHS3 compliant and has an MSL rating of 1, indicating unlimited shelf life under standard conditions. It is also REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum drain-source breakdown voltage is 100V.
The maximum continuous drain current at 25°C case temperature is 75A.
The typical on-resistance is 62mΩ at VGS=10V, ID=25A.
The maximum on-resistance is 75mΩ at VGS=10V, ID=25A.
The operating temperature range is -55°C to 175°C.
The package is TO-220-3, through-hole mounting.
The typical total gate charge is 54nC at VDS=25V, VGS=10V, ID=25A.
