Mfr Part #:

BTH-050-01-L-D-A-K-TR

Mfr Name: SMT

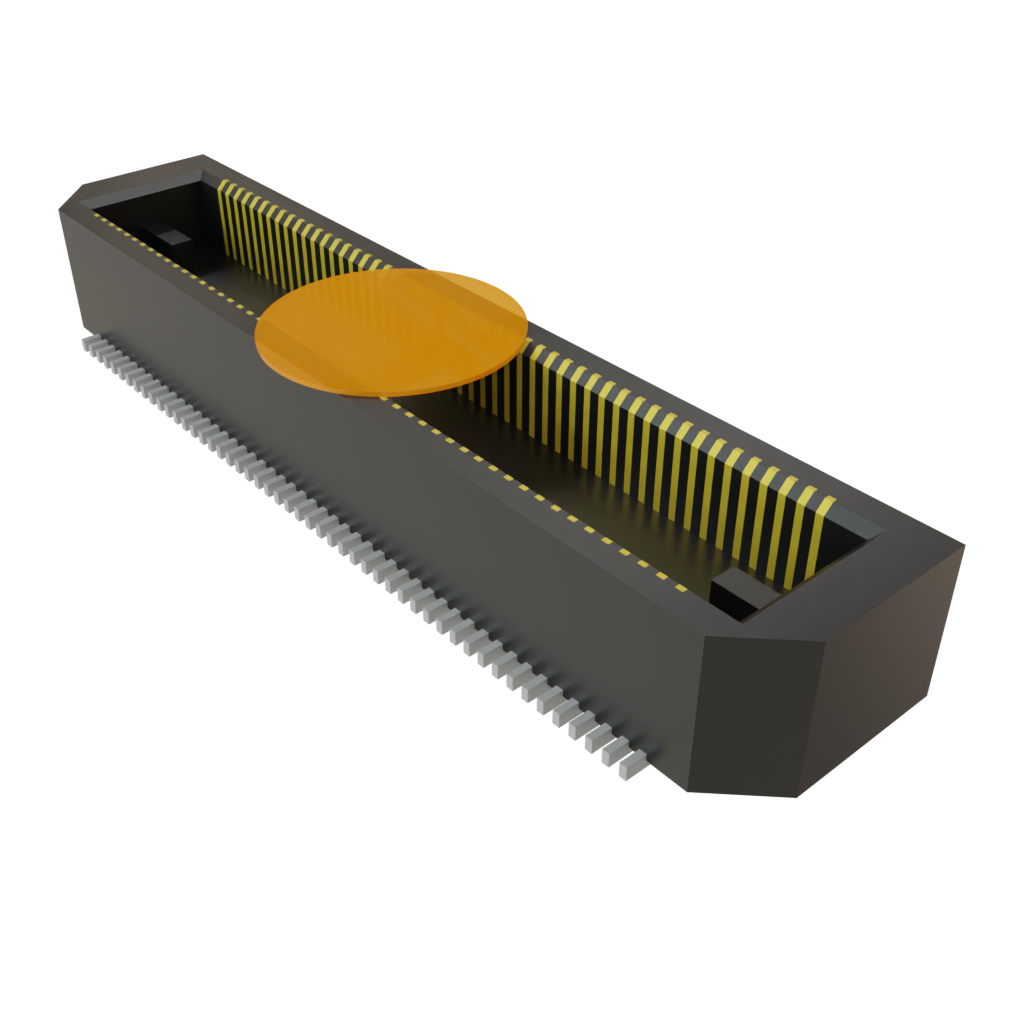

The Samtec BTH-050-01-L-D-A-K-TR is a 100-pin mezzanine header connector featuring a 0.5mm pitch and a 5mm stack height. It is supplied in Tape & Reel packaging.

✓ Total Stock: 850 pcs

$ Price Range: $1.00

BTH-050-01-L-D-A-K-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	850 pcs On Request	850 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

BTH-050-01-L-D-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	SMT
Pitch	0.5 mm
Plating	Gold/Tin
Tape & Reel	Tape & Reel

View Similar Products (0)

BTH-050-01-L-D-A-K-TR Description

Short technical summary and product information.

This Samtec BTH-050-01-L-D-A-K-TR is a high-density mezzanine SMT header connector designed for board-to-board applications. It features 100 pins arranged in 2 rows with a 0.5mm pitch, providing a compact solution for space-constrained designs.

The connector has a stack height of 5.0 mm and is equipped with 10 micro-inch gold/tin plating for reliable electrical contact. It is suitable for surface mount (SMT) applications and is provided in Tape & Reel packaging for automated assembly processes.

Key features include its high pin density and the Extended Life Product™ (E.L.P.™) designation, indicating enhanced durability. Optional alignment pins are also a standard feature for improved mechanical stability during mating and assembly.

BTH-050-01-L-D-A-K-TR Quick Information

Product Type: Header Connector

Series: BTH

Canonical Name: .5mm Blade & Beam Mezzanine SMT Header Connector

Subcategory: Mezzanine Connectors

BTH-050-01-L-D-A-K-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BTH-050-01-L-D-A-K-TR Estimated Pricing

Qty	Low	High
1+	$1.00	$1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTH-050-01-L-D-A-K-TR Features

100-pin mezzanine SMT header connector
0.5mm pitch for high density applications
5.0 mm stack height
10 micro-inch gold/tin contact plating
Tape & Reel packaging

BTH-050-01-L-D-A-K-TR Applications

Board-to-board interconnects
High-density electronic systems
Compact device designs
Automated assembly processes

BTH-050-01-L-D-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many pins does the BTH-050-01-L-D-A-K-TR have?

100 pins in 2 rows.

What is the pitch of this connector?

0.5mm.

What is the stack height?

5mm.

What is the mounting type?

Surface mount (SMT).

What is the contact plating?

Gold over tin (10µin gold).

What is the packaging?

Tape and reel, 425 per reel.

How many rows does the connector have?

2 rows.
