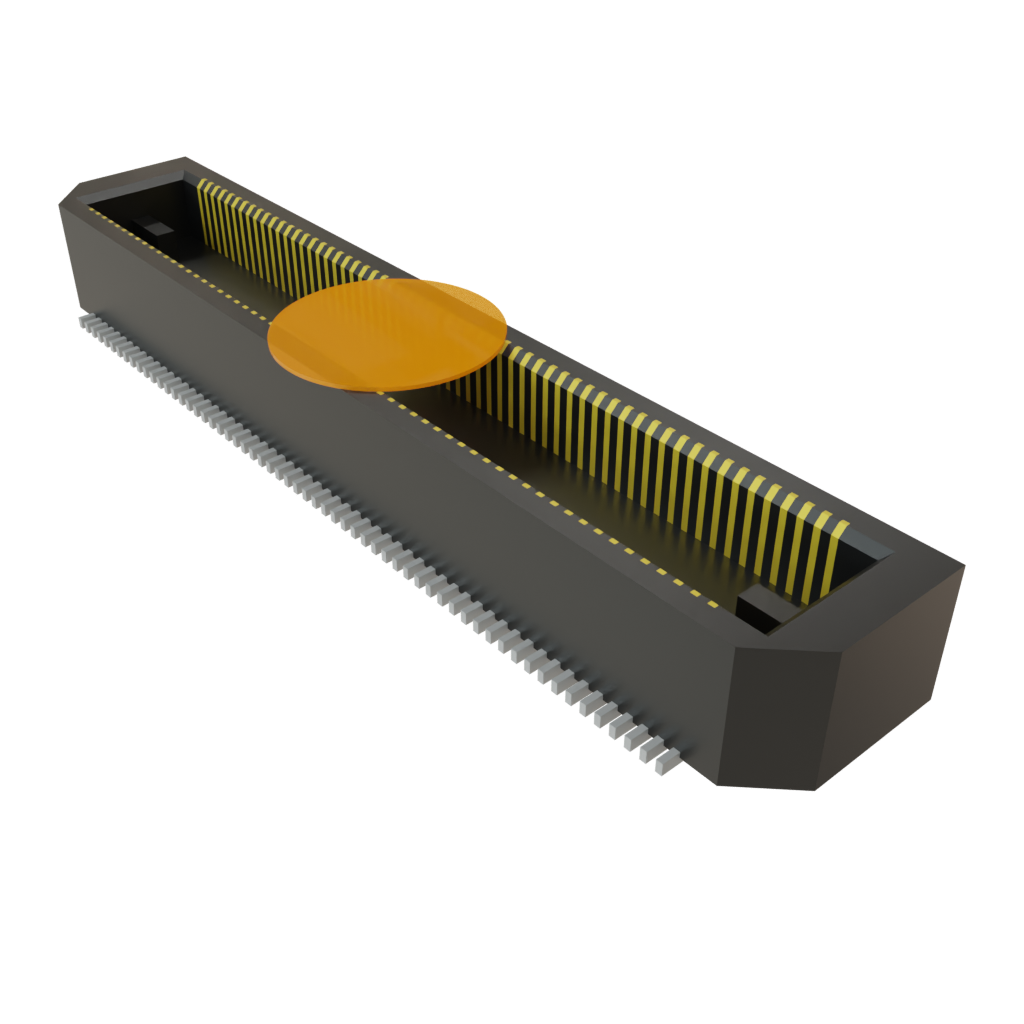

BTH-060-01-L-D-A-K-TR The Samtec BTH-060-01-L-D-A-K-TR is a 120-position mezzanine SMT header connector. It features a 0.5mm pitch and a 5mm stack height with gold/tin plating.
Mfr Part #:

BTH-060-01-L-D-A-K-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec BTH-060-01-L-D-A-K-TR is a 120-position mezzanine SMT header connector. It features a 0.5mm pitch and a 5mm stack height with gold/tin plating.
✓ Total Stock: 46 pcs
$ Price Range: $1.00

BTH-060-01-L-D-A-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
46 pcs
On Request
46 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BTH-060-01-L-D-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Halogen Free
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Plating
Tape & Reel
View Similar Products (0)

BTH-060-01-L-D-A-K-TR Description

Short technical summary and product information.

This Samtec BTH-060-01-L-D-A-K-TR is a high-density mezzanine SMT header connector designed for board-to-board applications. It offers 120 positions arranged in 2 rows, with a fine pitch of 0.5mm.



The connector has a stack height of 5.0 mm and features gold/tin plating for reliable electrical contact. The surface mount termination style ensures compatibility with automated assembly processes. Optional tape and reel packaging is available for high-volume manufacturing.



This series is part of Samtec's Blade & Beam High-Density Arrays, known for their performance in high-speed applications. The Extended Life Product (E.L.P.) designation suggests enhanced durability for high mating cycle requirements.

BTH-060-01-L-D-A-K-TR Quick Information

Product Type: Mezzanine Connector
Series: BTH
Canonical Name: .5mm Blade & Beam Mezzanine SMT Header Connector, 120 Positions, 2 Rows
Subcategory: Mezzanine

BTH-060-01-L-D-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BTH-060-01-L-D-A-K-TR Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

BTH-060-01-L-D-A-K-TR Features

  • 120 position mezzanine SMT header connector.
  • 0.5mm pitch for high density applications.
  • 5.0 mm stack height.
  • Gold/Tin plating for reliable contact.
  • Surface mount termination style.

BTH-060-01-L-D-A-K-TR Applications

  • Ideal for board-to-board interconnects.
  • Suitable for high-speed applications.
  • Used in high-density electronic designs.
  • Supports automated assembly processes.

BTH-060-01-L-D-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the BTH-060-01-L-D-A-K-TR have?

120 positions.

What is the pitch of this connector?

0.5 mm.

What is the mounting type?

Surface mount (SMT).

What is the stack height?

5 mm.

How many rows does it have?

2 rows.

What is the contact plating?

Gold/tin.

What packaging is available?

Tape and reel, standard quantity 425.
