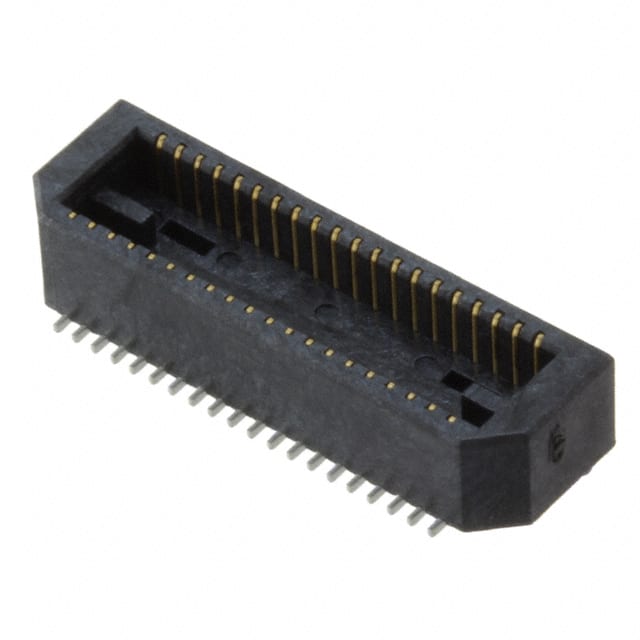

The Samtec BTE-020-01-L-D-A-TR is a 40 position header outer shroud contacts connector designed for board-to-board mezzanine applications. It features a 0.80mm pitch and 2 rows, providing a compact interconnect solution. The connector is surface mount and has a height above board of 4.27mm with a mated stacking height of 5.03mm.
The contacts are finished with 10.0µin (0.25µm) gold, ensuring reliable electrical performance. The connector includes a board guide feature for accurate alignment during assembly. It is supplied in tape and reel packaging suitable for automated pick-and-place processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 10+ | $3.36 | $3.36 |
| 100+ | $2.86 | $2.86 |
| 425+ | $2.47 | $2.47 |
| 850+ | $2.25 | $2.25 |
| 1,275+ | $2.13 | $2.13 |
| 2,975+ | $2.08 | $2.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 40 positions arranged in 2 rows.
The pitch is 0.80mm.
The connector is surface mount.
The contact finish is gold with a thickness of 10.0µin (0.25µm).
The height above board is 4.27mm.
The mated stacking height is 5.03mm.
Yes, it includes a board guide feature.
