| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,390 pcs
|
22390 pcs | On Request | 1 | On Request | On Request | 17+18+ | On Request | On Request | |
|
8,071 pcs
|
8071 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request | |
|
5,600 pcs
|
5600 pcs | On Request | 1 | On Request | On Request | 17+20+22+ | On Request | On Request | |
|
519 pcs
|
519 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type |
The Infineon BSP75N is a monolithic N-channel vertical power FET utilizing Smart Power Technology. It is designed as a µC compatible power switch for 12V, 24V DC, and 42 Volt Powernet applications, replacing electromechanical relays and discrete circuits. This device is fully protected by embedded functions including input protection (ESD), thermal shutdown with auto-restart, overload protection, short circuit protection, overvoltage protection, and current limitation.
Key electrical specifications include a continuous drain source voltage of 60V, an on-state resistance of 550 mΩ, a nominal load current of 0.7A, and a current limitation typically at 1.4A. The clamping energy is rated at 550 mJ. The BSP75N features a logic-level input and an open drain DMOS output stage, making it suitable for various resistive, inductive, and capacitive loads in switching applications.

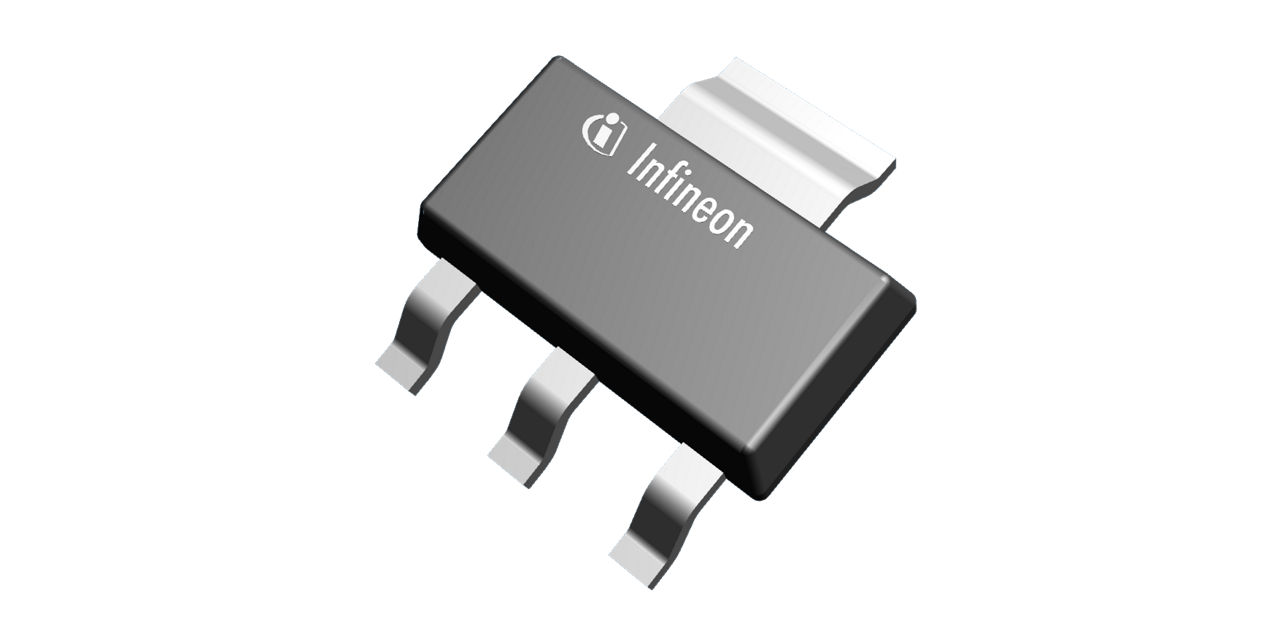

Packaged in a PG-SOT223-4, this surface-mount device is designed for automotive and industrial applications. Its integrated protection functions enhance reliability and simplify circuit design.
The BSP75N is a green product, compliant with RoHS standards. It is qualified for AEC stress testing, indicating its suitability for demanding automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60V minimum.
550 mΩ.
1.4A typical.
0.7A.
550 mJ typical.
SOT-223 surface mount package.
