Mfr Part #:

BSH103

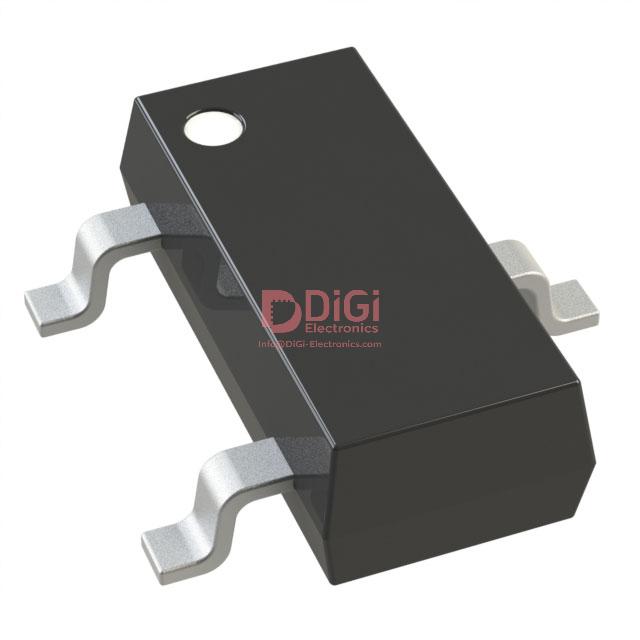

The Nexperia BSH103 is an N-Channel MOSFET with a 30V drain-to-source voltage and 850mA continuous drain current. It is available in a surface mount TO-236AB package.

✓ Total Stock: 19,204 pcs

$ Price Range: $0.99

BSH103 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	18,000 pcs On Request	18000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,204 pcs On Request	1204 pcs	On Request	1	On Request	On Request	22+21+	On Request	On Request

BSH103 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Nexperia USA Inc.
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	2.1 nC
Input Capacitance (Ciss) (Max) @ Vds	83 pF
Mounting Type	Surface Mount
Power Dissipation	540 mW
Rds On (Max) @ Id, Vgs	400 mOhm

View Similar Products (0)

BSH103 Description

Short technical summary and product information.

The Nexperia BSH103 is an N-Channel MOSFET designed for various electronic applications. It features a drain-to-source voltage (Vdss) of 30V and a continuous drain current (Id) of 850mA at 25°C. The device exhibits a maximum on-resistance (Rds On) of 400mOhm at 500mA and 4.5V gate-source voltage.

Key electrical characteristics include a gate threshold voltage (Vgs(th)) of 400mV at 1mA, a maximum gate-to-source voltage (Vgs) of ±8V, and an input capacitance (Ciss) of 83pF at 24V. The power dissipation is rated at 540mW at 25°C. The MOSFET is housed in a TO-236AB package and is designed for surface mounting.

This component is suitable for applications requiring efficient switching and voltage control. Its specifications make it a viable option for power management circuits and signal switching within electronic devices.

BSH103 Quick Information

Product Type: MOSFET

Canonical Name: N-Channel MOSFET

Subcategory: Single FETs, MOSFETs

BSH103 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BSH103 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

BSH103 Features

N-Channel MOSFET with 30V drain-to-source voltage.
850mA continuous drain current at 25°C.
400mOhm maximum on-resistance.
Surface mount TO-236AB package.
±8V maximum gate-to-source voltage.

BSH103 Applications

Suitable for power switching applications.
Used in voltage regulation circuits.
Ideal for signal control applications.
Component for general electronic circuits.

BSH103 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the drain-to-source voltage of the BSH103?

The drain-to-source voltage (Vdss) of the BSH103 is 30V.

What is the continuous drain current for the BSH103 at 25°C?

The continuous drain current (Id) for the BSH103 at 25°C is 850mA.

What is the maximum on-resistance of the BSH103?

The maximum on-resistance (Rds On) of the BSH103 is 400mOhm at 500mA drain current and 4.5V gate-source voltage.

What is the package type for the BSH103?

The BSH103 is supplied in a TO-236AB package for surface mounting.

What is the maximum gate-to-source voltage for the BSH103?

The maximum gate-to-source voltage (Vgs) for the BSH103 is ±8V.
