| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

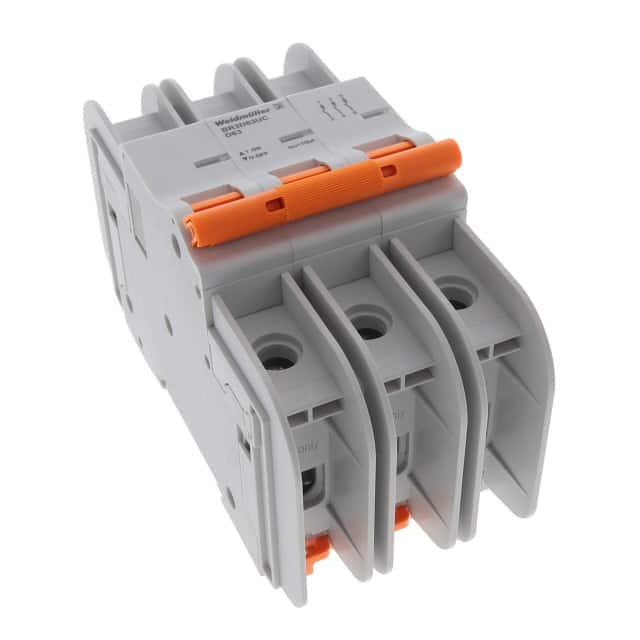

The Weidmüller BR3D63UC is a thermal magnetic miniature circuit breaker designed for reliable branch circuit protection. It features a 3-pole configuration and a current rating of 63A, suitable for 240V AC/DC applications.
This circuit breaker is approved by multiple agencies including CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE, ensuring compliance with various industry standards. Its thermal magnetic trip mechanism provides robust protection against overcurrents and short circuits.
The BR3D63UC is designed for easy installation on a standard DIN rail, making it suitable for panel building and industrial control systems. The actuator type is a lever, providing a clear visual indication of the breaker's status.
This component is part of the BR/SUxxxUC Series, which offers solutions for both AC and DC branch circuit protection and supplementary protection. It is RoHS compliant and has an MSL of 1 Unlimited.
63A.
3 poles.
240V.
DIN Rail.
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, VDE.
Lever.
No, it is non-illuminated.
