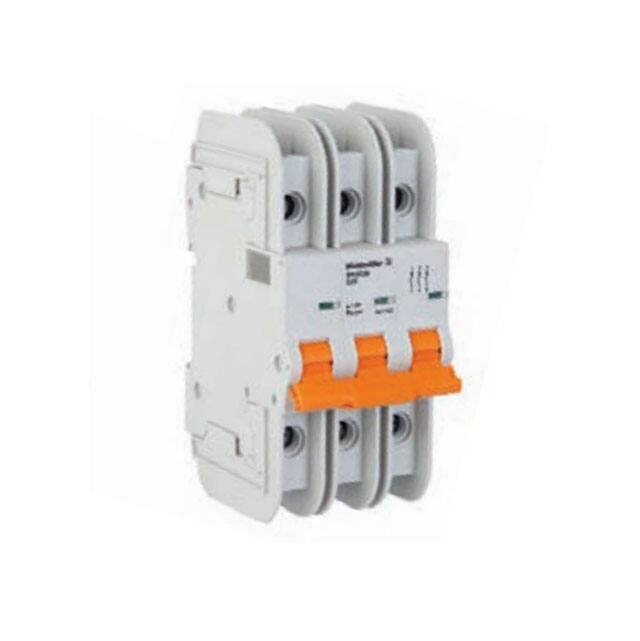

The Weidmüller BR3D5UC is a thermal magnetic miniature circuit breaker designed for branch circuit protection. This 3-pole device offers a current rating of 5A and a voltage rating of 277V AC, with an additional AC voltage rating of 415V.
It is suitable for DIN rail mounting, making it convenient for panel installations. The breaker type is thermal magnetic, and the actuator type is a lever. It is approved by CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE.
This circuit breaker is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited. It is part of the BR Series and is designed for AC/DC rated applications, providing reliable protection against overcurrents and short circuits in industrial environments.
The BR3D5UC is rated for 277V AC and 415V AC.
The current rating is 5A.
It is a 3-pole circuit breaker.
It is a thermal magnetic circuit breaker.
It mounts on a DIN rail.
It is certified to CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE.
It has a lever actuator.
