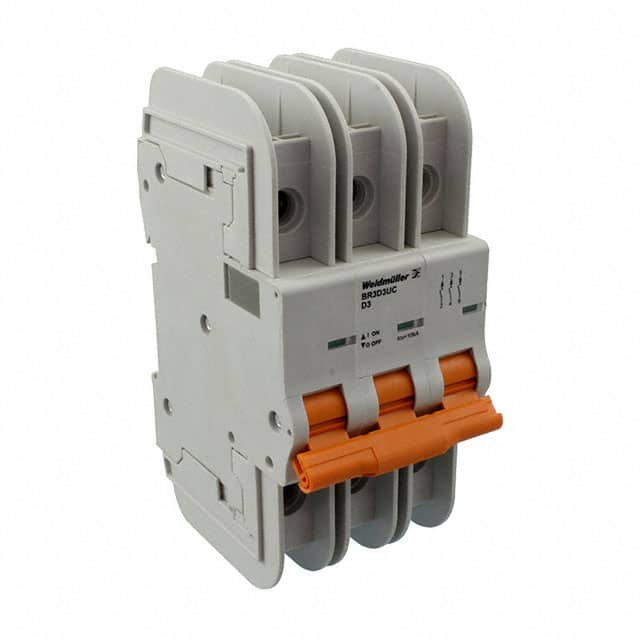

The Weidmüller BR3D3UC is a thermal magnetic miniature circuit breaker designed for reliable branch circuit protection. This 3-pole breaker features a 3A current rating and a 277V voltage rating, making it suitable for various AC and DC applications.
Engineered for industrial environments, the BR3D3UC offers robust protection for wires and cables against application or device malfunctions. Its thermal magnetic tripping mechanism ensures precise overcurrent and short-circuit protection. The breaker is designed for easy installation on standard DIN rail mounting systems.
This circuit breaker is compliant with UL489 and UL1077 standards, indicating its suitability for both branch circuit and supplementary protection. It is also RoHS3 compliant, aligning with environmental regulations for electronic components.
Key specifications include a 3A current rating, 277V voltage rating, and a 3-pole configuration. The thermal magnetic breaker type and lever actuator are standard features for this series. Its compact design and DIN rail mounting facilitate integration into control panels and electrical enclosures.
The current rating is 3A.
The voltage rating is 277V.
It has 3 poles.
It is a thermal magnetic breaker.
It is designed for DIN rail mounting.
Yes, it is RoHS3 Compliant.
