| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

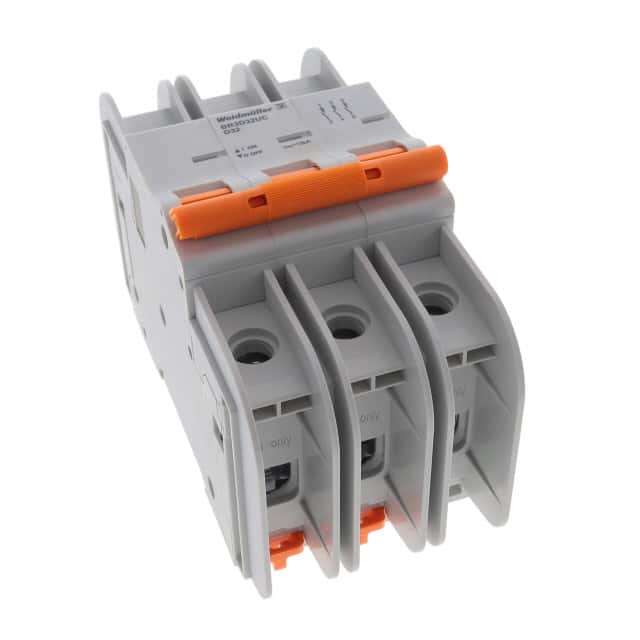

The Weidmüller BR3D32UC is a thermal magnetic miniature circuit breaker designed for AC/DC branch circuit protection. It features a 3-pole configuration with a current rating of 32A and a voltage rating of 277V AC. This breaker is suitable for DIN rail mounting, making it easy to integrate into control panels and electrical enclosures.
With approvals from CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE, the BR3D32UC meets stringent safety and performance standards. Its thermal magnetic trip mechanism provides reliable protection against overcurrent and short-circuit conditions. The lever actuator allows for straightforward operation and status indication.
This circuit breaker is part of the BRxxxUC series, designed to protect wires and cables from application or device malfunctions. It is a robust solution for industrial and commercial applications requiring dependable circuit protection.
The BR3D32UC is rated for 32A.
The voltage rating is 277V.
It is a 3-pole circuit breaker.
It uses a thermal magnetic trip mechanism.
It is designed for DIN rail mounting.
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE.
Bulk packaging.
