| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

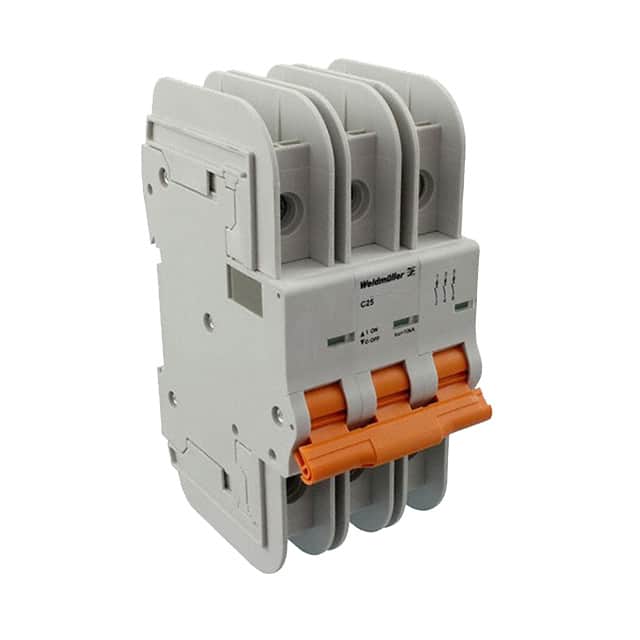

The Weidmüller BR3D30UC is a thermal magnetic miniature circuit breaker designed for reliable branch circuit protection. This 3-pole unit offers a 30A current rating and a 277V voltage rating, suitable for various AC and DC applications.
Engineered for industrial environments, the BR3D30UC features a DIN rail mounting type for easy integration into control panels and enclosures. Its thermal magnetic tripping mechanism provides robust protection against overcurrent and short circuits.
This circuit breaker is approved by multiple agencies including CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE, ensuring compliance with international standards. The lever actuator allows for straightforward operation.
Key specifications include a 30A current rating, 277V voltage rating, and 3 poles. The RoHS status is compliant with RoHS3, and it has an MSL of 1.
277V AC/DC.
30A.
3 poles.
Thermal magnetic.
Lever.
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, VDE.
DIN Rail.
