| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

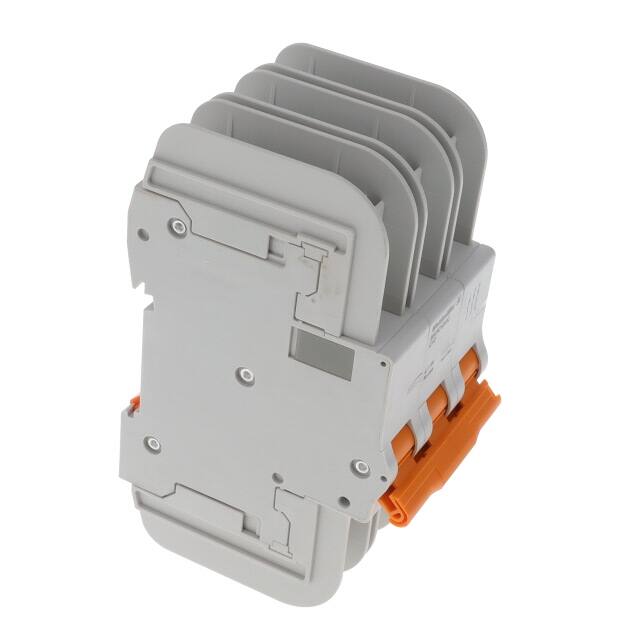

The Weidmüller BR3C12UC is a thermal magnetic miniature circuit breaker designed for AC/DC branch circuit protection. It features a 3-pole configuration with a current rating of 12A and a voltage rating of 277V.
This circuit breaker is approved by multiple agencies including CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE, ensuring compliance with various industry standards. It is suitable for DIN rail mounting, making installation in control panels and enclosures straightforward.
The BR/SUxxxUC series, to which this part belongs, offers reliable protection for wires and cables against application or device malfunctions. The thermal magnetic tripping mechanism provides overcurrent and short-circuit protection.
Key specifications include a 12A current rating, 277V voltage rating, and 3 poles. The breaker type is thermal magnetic, and it is designed for DIN rail mounting.
12A
3 poles
277V AC/DC
DIN Rail
Thermal magnetic
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, VDE
