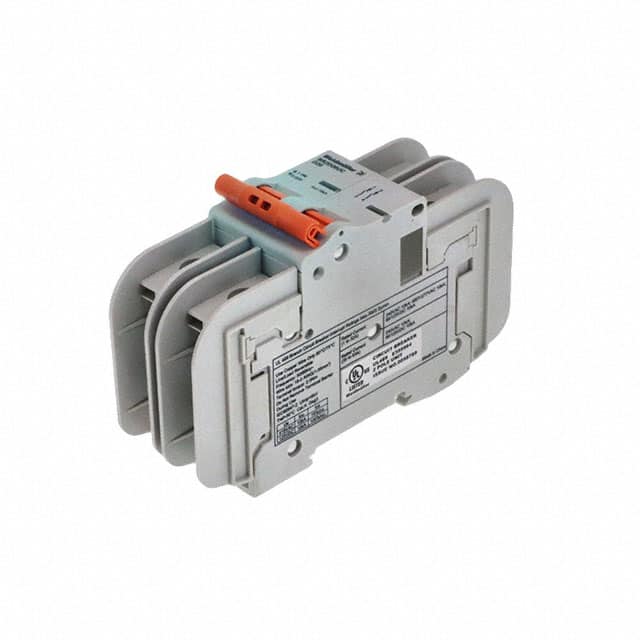

The Weidmüller BR2D20UC is a thermal magnetic miniature circuit breaker designed for AC/DC branch circuit protection. It offers a 20A current rating and a 480V voltage rating, with a 2-pole configuration.
This circuit breaker is suitable for DIN rail mounting, making it convenient for panel installations. Its thermal magnetic trip mechanism provides reliable protection against overcurrents and short circuits.
The BR2D20UC is part of the BR/SUxxxUC series, which includes breakers engineered for various protection needs. This model is specifically designed for branch circuit protection, ensuring the safety of wires and cables from application or device malfunctions.
Key specifications include a 20A current rating, 480V voltage rating, and 2 poles. The breaker type is thermal magnetic, and it mounts on a DIN rail. It is also listed with UL489 and other agency approvals.
The BR2D20UC has a current rating of 20A.
The BR2D20UC has a voltage rating of 480V.
The BR2D20UC has 2 poles.
The BR2D20UC is a thermal magnetic circuit breaker.
The BR2D20UC is mounted on a DIN rail.
The BR2D20UC has a lever actuator.
