| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

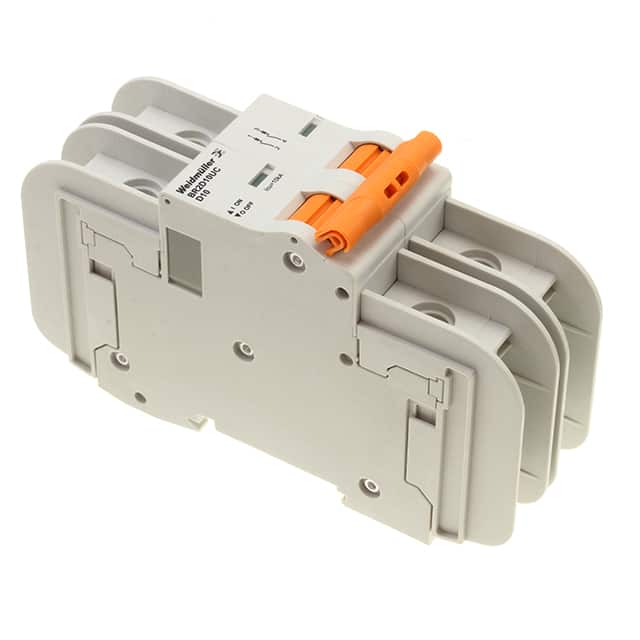

The Weidmüller BR2D10UC is a thermal magnetic miniature circuit breaker designed for reliable branch circuit protection. It features a 2-pole configuration and a current rating of 10A, with a voltage rating of 480V.
This circuit breaker is built with a thermal magnetic trip mechanism, providing protection against overcurrents and short circuits. Its robust design ensures dependable operation in industrial environments. The actuator type is a lever, allowing for easy manual operation.
Designed for convenient installation, the BR2D10UC utilizes DIN rail mounting. It carries multiple agency approvals including CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, and VDE, indicating its suitability for a wide range of applications and regions. The series is also known as the BR/SUxxxUC Series.
This component is compliant with RoHS3 standards and has an MSL rating of 1. It is suitable for applications requiring AC/DC power circuit protection.
10A.
480V.
2.
Thermal magnetic.
DIN Rail.
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL489, VDE.
Lever.
