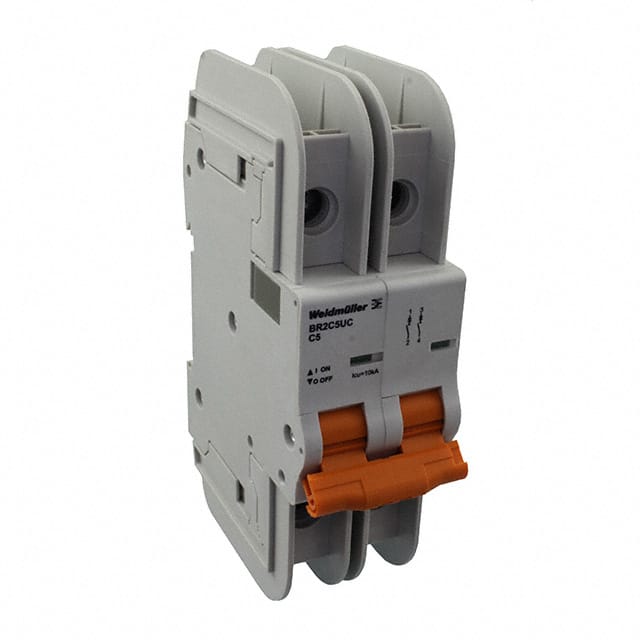

The Weidmüller BR2C5UC is a 2-pole thermal magnetic miniature circuit breaker designed for reliable overcurrent and short-circuit protection in industrial and automation circuits. It has a rated current of 5A and a C-curve tripping characteristic, making it suitable for various applications.
This circuit breaker is rated for 480V AC and 125V DC, offering versatility for different power systems. Its thermal magnetic technology ensures dependable protection against electrical faults. The DIN-rail mounting type allows for easy integration into control panels and cabinets.
With an interrupting capacity of approximately 10 kA, the BR2C5UC provides robust protection for wires and cables. It is designed for use in industrial electrical systems, automation panels, control cabinets, and machinery electrical distribution, ensuring safety and operational continuity.
The BR2C5UC has a nominal current rating of 5A.
The BR2C5UC is rated for 480V AC/DC overall, with per-pole ratings of 240VAC and 125VDC.
The BR2C5UC is a 2 pole circuit breaker.
The BR2C5UC has a typical interrupting capacity of 10 kA.
The BR2C5UC is designed for DIN Rail mounting.
The BR2C5UC has a C tripping curve.
