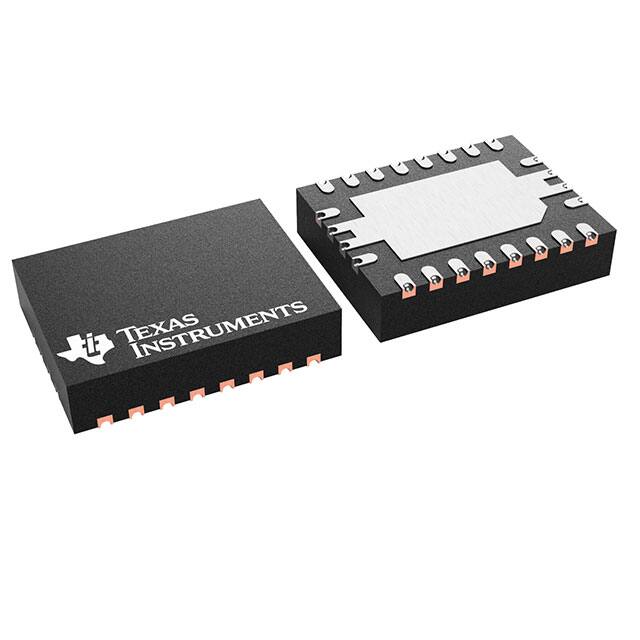

BQ51013BQWRHLRQ1 The Texas Instruments BQ51013BQWRHLRQ1 is an automotive-qualified, highly integrated wireless power receiver IC. It supports WPC v1.2 standards and provides up to 5W of power.
Mfr Part #:

BQ51013BQWRHLRQ1

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments BQ51013BQWRHLRQ1 is an automotive-qualified, highly integrated wireless power receiver IC. It supports WPC v1.2 standards and provides up to 5W of power.
✓ Total Stock: 120,883 pcs
$ Price Range: $1.77

BQ51013BQWRHLRQ1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
120,023 pcs
On Request
120023 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
860 pcs
On Request
860 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BQ51013BQWRHLRQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Automotive Grade
Current
Maximum Input Voltage
Mounting Type
Operating Temperature
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

BQ51013BQWRHLRQ1 Description

Short technical summary and product information.

The BQ51013BQWRHLRQ1 from Texas Instruments is a single-chip, advanced, flexible, secondary-side device for wireless power transfer in portable applications, capable of providing up to 5W. This IC integrates the receiver (RX) AC-to-DC power conversion and regulation, along with the digital control required to comply with the Wireless Power Consortium (WPC) Qi v1.2 communication protocol.



Key features include a 93% overall peak AC-DC efficiency, a full synchronous rectifier, and WPC v1.2 compliant communication control. It operates within a 4V to 7V input voltage range and a wide ambient operating temperature range of -40°C to +125°C. The device also incorporates a low-power dissipative rectifier overvoltage clamp set at 15V and thermal shutdown protection.



Designed for automotive applications, the BQ51013BQWRHLRQ1 is AEC-Q100 qualified. It is supplied in a 20-VQFN Exposed Pad package with surface mount, wettable flank mounting type. This highly integrated solution requires only the IC between the Rx coil and the output, simplifying system design for wireless power supply solutions.

BQ51013BQWRHLRQ1 Quick Information

Product Type: Wireless Power Receiver IC
Canonical Name: BQ51013BQWRHLRQ1 Automotive Highly Integrated Wireless Receiver Qi (WPC v1.2) Compliant Power Supply
Subcategory: Wireless Power Receiver

BQ51013BQWRHLRQ1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BQ51013BQWRHLRQ1 Estimated Pricing

Qty Low High
1+ $1.77 $1.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

BQ51013BQWRHLRQ1 Features

  • Automotive qualified WPC 1.2 receiver IC
  • Up to 5W wireless power transfer
  • 93% peak AC-DC efficiency
  • Wide -40°C to 125°C operating temperature
  • Integrated voltage and current regulation

BQ51013BQWRHLRQ1 Applications

  • Wireless power supply receivers
  • Automotive charging systems
  • Portable electronic devices
  • Contactless power transfer

BQ51013BQWRHLRQ1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the BQ51013BQWRHLRQ1?

4V to 7V (maximum input voltage 20V).

What is the package type of the BQ51013BQWRHLRQ1?

20-VQFN Exposed Pad (3.5x4.5mm) with surface mount wettable flank.

What is the operating temperature range?

-40°C to 125°C (TA).

What is the peak efficiency of the BQ51013BQWRHLRQ1?

93% peak AC-DC efficiency.

What is the maximum power output?

5W.

What is the overvoltage clamp voltage?

15V.

What is the typical operating current?

8mA.
