| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50,000 pcs
|
50000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Interface | |
| Mounting Type | |
| SVHC Present |

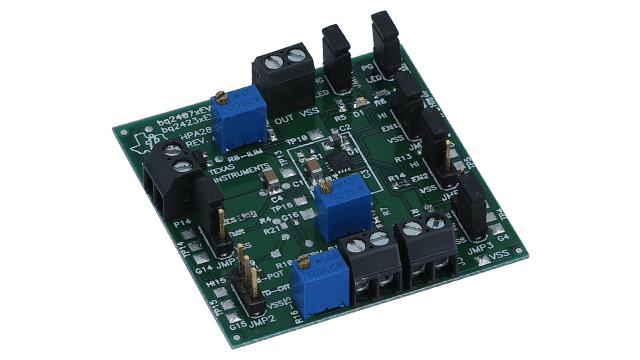

The Texas Instruments BQ24230 is a highly integrated USB-friendly lithium-ion battery charger IC designed for portable applications. It features dynamic power management, allowing it to simultaneously power the system and charge the battery.
This charger IC supports a maximum charge current of 0.5A and operates with an input voltage range of 4.35V to 6.4V, with an absolute maximum input voltage rating of 28V. The battery charge voltage is set at 4.2V. It offers selectable input current limits of 100mA and 500mA, ensuring compliance with USB standards.
The BQ24230 is housed in a compact 16-lead VQFN package measuring 3mm x 3mm, making it suitable for space-constrained designs. It operates across a temperature range of -40°C to 85°C. Key features include BAT temperature monitoring, input overvoltage protection (OVP), and input voltage dynamic power management (VINDPM) for protection against poor USB sources.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum charge current for the BQ24230 is 0.5A.
The BQ24230 has a minimum input voltage of 4.35V and a maximum input voltage of 6.4V.
The battery charge voltage for the BQ24230 is 4.2V.
The BQ24230 supports Li-Ion/Li-Polymer battery chemistry.
The BQ24230 operates in a temperature range of -40°C to 85°C.
The BQ24230 is available in a 16-lead VQFN package measuring 3mm x 3mm.
