| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,915 pcs
|
1915 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Control Interface | |
| Mounting Type | |
| Operating Temperature Range | |
| SVHC Present |
The BQ25171-Q1 from Texas Instruments is a standalone, 800-mA linear battery charger designed for automotive applications. It is AEC-Q100 qualified and supports multiple battery chemistries, including 1- to 2-cell Li-Ion, Li-Polymer, and LiFePO4, as well as 1- to 6-cell NiMH batteries.
This charger operates with an input voltage range of 3 V to 18 V, with an absolute maximum rating of 40 V, and features 40-V load-dump tolerance. It offers precise control with external resistors to set battery regulation voltage from 3.5 V to 8.4 V and charge current from 10 mA to 800 mA. Key electrical specifications include ±0.5% charge voltage accuracy and ±10% charge current accuracy.
Designed for reliability, the BQ25171-Q1 includes integrated fault protection such as 18-V input overvoltage protection, 1000-mA overcurrent protection, and output short-circuit protection. It also features thermal regulation at 125°C and thermal shutdown at 150°C. The device operates within an extended temperature range of -40°C to 125°C and comes in a compact VSON (DRC) package suitable for surface mounting.
Additional features include battery temperature monitoring via an NTC thermistor input, automatic sleep mode for low power consumption, and status/fault indication outputs. Its standalone interface and RC-settability simplify integration into various automotive power management systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum charge current is 0.8 A.
It supports Li-Ion, Li-Polymer, Lithium Phosphate (LiFePO4), and NiMH.
The input voltage range is 3 V to 18 V.
It can charge 1 to 6 series cells.
The operating temperature range is -40°C to 125°C.

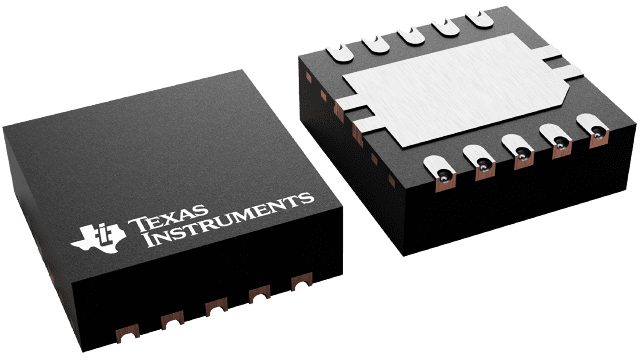

It is available in a 3 mm × 3 mm VSON (DRC) package.
