| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material Thickness | |
| Height | |
| Length | |
| Mounting Type | |
| Plating Thickness | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Ventilation | |
| Width |

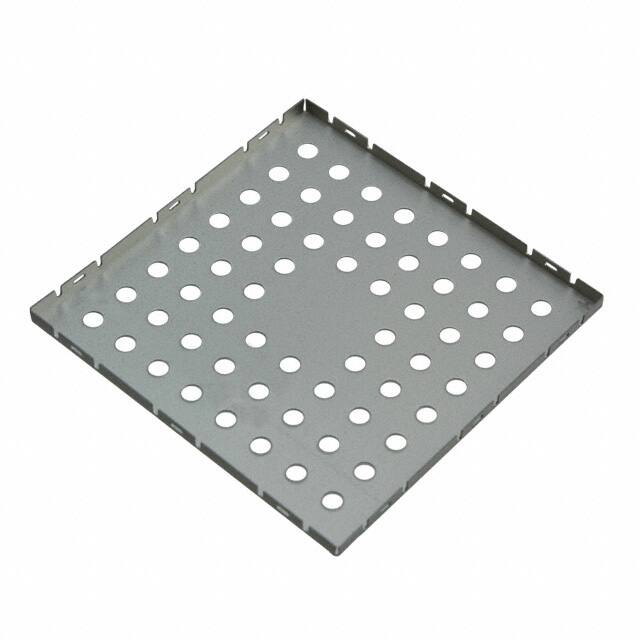

The Laird Technologies BMI-S-207-C is a component within the RF Shields category, specifically a two-piece board level shield cover. It is constructed from Cold Rolled Steel (CRS) with a matte tin plating, offering a plating thickness between 1.25 and 5.00 microns.
This shield has a width and length of 44.83mm (1.765 inches) and a height of 2.00mm (0.079 inches). It utilizes a convenient snap fit mounting type for easy installation on PCBs. The shield also features ventilation holes in a pattern to aid in thermal management or signal integrity.
Compliance information indicates it is RoHS3 Compliant and Lead Free. The Moisture Sensitivity Level (MSL) is rated as 1, signifying unlimited usability under standard conditions. The REACH status is noted as unaffected. Storage temperature recommendations are between 10°C and 25°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BMI-S-207-C has a width of 44.83mm, a length of 44.83mm, and a height of 2.00mm.
The BMI-S-207-C shield is mounted using a snap fit mechanism.
The shield is made of Cold Rolled Steel (CRS) with matte tin plating.
The plating thickness ranges from 1.25 to 5.00 microns.
The recommended storage temperature is between 10°C and 25°C.
Yes, the BMI-S-207-C is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the BMI-S-207-C is 1.
