| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,190 pcs
|
1190 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material Thickness | |
| Castellations | |
| Flatness / Coplanarity | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Parts Per Reel/Tray | |
| Plating | |
| Plating Thickness | |
| Shelf Life | |
| Storage Temperature | |
| Tape & Reel | |
| Tape and Reel | |
| Type | |
| Width |

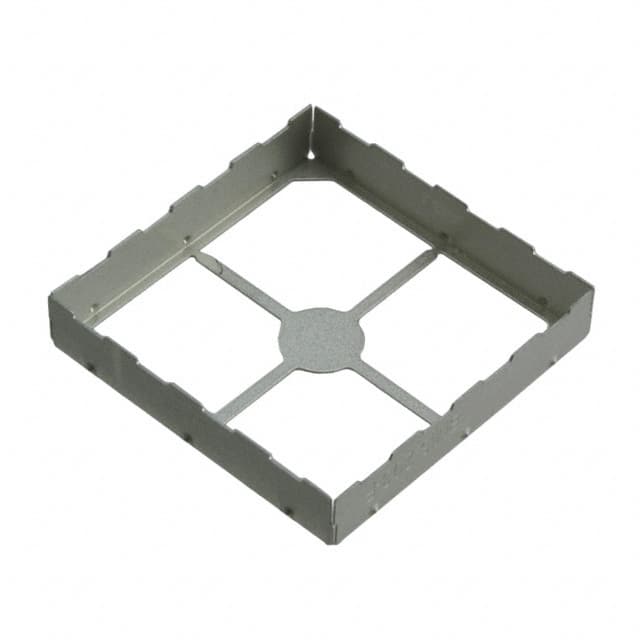

The Laird Technologies BMI-S-203-F is a two-piece board level shield, specifically designed as a frame for RF shielding applications. This component is manufactured from CRS (Cold Rolled Steel) and features a matte tin plating with a thickness ranging from 1.25 to 5.00 microns.
Key mechanical specifications include a base material thickness of 0.20mm, a height of 5.08mm, and a length and width of 26.21mm each. The shield is designed for surface mounting and includes castellations for enhanced performance. Its flatness and coplanarity are typically less than 0.10 mm.
Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1 Unlimited. The product is also designated as Lead Free and REACH Unaffected. Packaging is provided on tape and reel, with 300 parts per reel/tray.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BMI-S-203-F is a two-piece board level shield, designed as a frame.
The shield has a length and width of 26.21mm and a height of 5.08mm.
The BMI-S-203-F is a surface mount component.
The shield is plated with matte tin to a thickness of 1.25 - 5.00 Microns.
The flatness and coplanarity are typically less than 0.10 mm.
The BMI-S-203-F is packaged on tape and reel with 300 parts per reel.
