| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material Thickness | |
| Bulk | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Plating | |
| Plating Thickness | |
| Shelf Life | |
| Storage Temperature | |
| Type | |
| Ventilation | |
| Width |

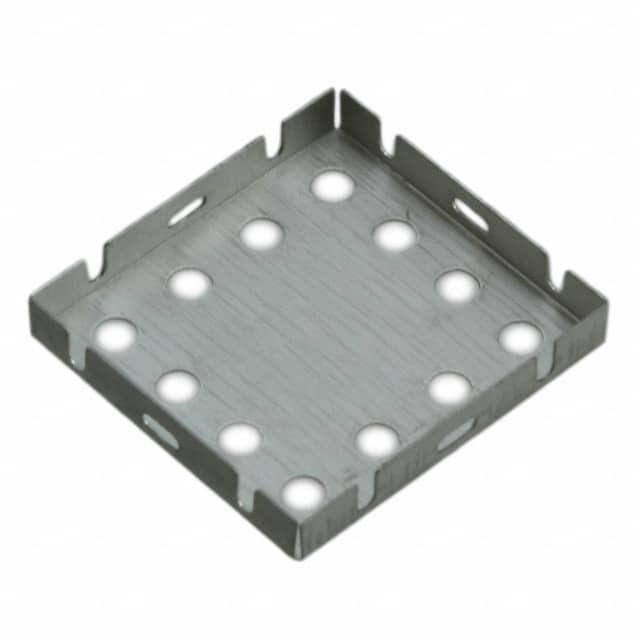

The Laird Technologies BMI-S-201-C is a two-piece board level shield cover, part of the Two-Piece Board Level Shields series. It is constructed from CRS (Cold Rolled Steel) with a Matte Tin plating, offering a plating thickness between 1.25 and 5.00 microns. The shield has dimensions of 14.02mm in length, 13.06mm in width, and 2.00mm in height, with a base material thickness of 0.13mm.
This shield is designed for snap fit mounting and includes ventilation features in a pattern. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions. The REACH status is unaffected. The typical shelf life is 6-12 months, and it should be stored at temperatures between 10° and 25° C.
This component is suitable for applications requiring EMI shielding at the board level. Its construction and features make it a practical choice for protecting sensitive electronic components from electromagnetic interference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BMI-S-201-C RF shield is made of CRS (Cold Rolled Steel).
The BMI-S-201-C shield is mounted using a Snap Fit mechanism.
The BMI-S-201-C shield has dimensions of 14.02mm in length, 13.06mm in width, and 2.00mm in height.
The BMI-S-201-C is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the BMI-S-201-C is 1 Unlimited.
