| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material Thickness | |
| Flatness / Coplanarity | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Parts Per Reel/Tray | |
| Plating | |
| Plating Thickness | |
| Shelf Life | |
| Storage Temperature | |
| Type | |
| Ventilation | |
| Width |

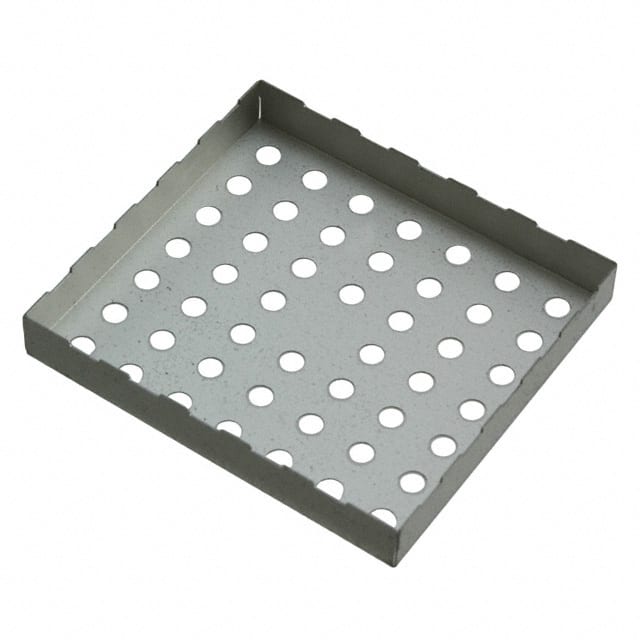

The Laird Technologies BMI-S-106 is a one-piece RF shield designed for surface mount applications. It measures 36.83mm in length, 33.68mm in width, and 5.08mm in height.
Constructed from CRS with a Matte Tin plating, this shield features ventilation holes for optimal performance. It is packaged on tape and reel with 300 units per reel.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The typical shelf life is 6-12 months, and it should be stored between 10°-25° C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BMI-S-106 RF shield has a length of 36.83mm (1.450"), a width of 33.68mm (1.326"), and a height of 5.08mm (0.200").
The BMI-S-106 is a one-piece RF shield.
The BMI-S-106 shield is designed for surface mounting.
The BMI-S-106 shield is plated with Matte Tin to a thickness of 1.25 - 5.00 Microns.
The BMI-S-106 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the BMI-S-106 is 1 Unlimited.
