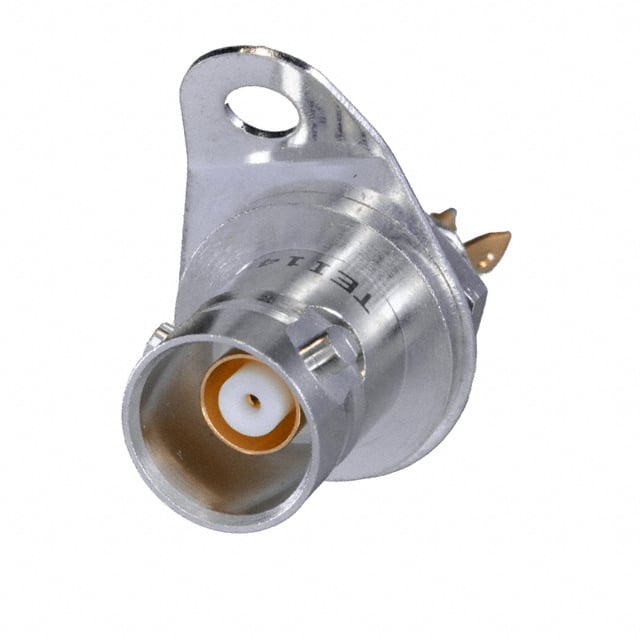

The Cinch BJ77 is a TRB (Twinaxial/Triaxial) connector designed as a jack with a female socket (concentric) contact. It features a panel mount configuration with a bulkhead rear side nut mounting feature, secured by a bayonet lock fastening mechanism.
The connector uses a solder cup contact termination and a solder tag shield termination. The center contact is made of beryllium copper. The housing is silver in color. It is designed for non-constant impedance and has a frequency rating of 500 MHz.
Additional features include extended insulation and a three-lug design. This connector is suitable for applications requiring a reliable twinaxial/triaxial connection in a panel-mounted setup. The single port configuration supports a single coaxial connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $25.67 | $25.67 |
| 10+ | $21.82 | $21.82 |
| 25+ | $20.45 | $20.45 |
| 50+ | $19.48 | $19.48 |
| 100+ | $19.08 | $19.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount with bulkhead rear side nut.
500 MHz.
Solder cup for contact and solder tag for shield.
Bayonet lock.
TRB, Twinaxial/Triaxial.
Beryllium copper.
Extended insulation and three-lug design.
