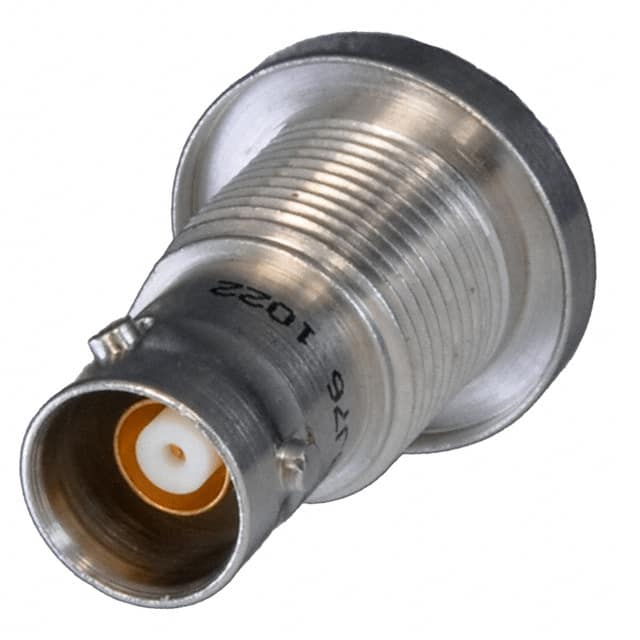

The Cinch BJ76 is a TRB (Twinaxial/Triaxial) connector featuring a jack, female socket (concentric) configuration. It is designed for panel mounting with a bulkhead front side nut mounting feature and uses a bayonet lock fastening type for secure mating.
This connector supports frequencies up to 500 MHz and has a non-constant impedance. The center contact is made of beryllium copper, and the contact termination is a solder cup. The shield termination uses a solder tag. The housing is silver in color and includes extended insulation and three lugs.
The BJ76 is a single-port connector suitable for applications requiring reliable twinaxial or triaxial connections in panel-mounted installations.
