| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

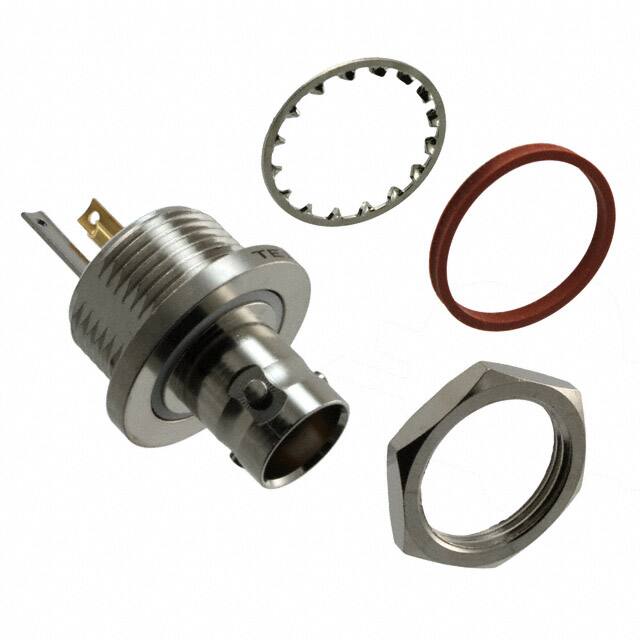

The Cinch BJ72 is a TRB (Twinaxial/Triaxial) connector configured as a jack with a female socket (concentric) contact. It is designed for panel mounting with a bulkhead rear side nut and features a bayonet lock fastening mechanism for secure mating.
This connector supports a non-constant impedance and is rated for operation up to 500 MHz. The center contact is made of beryllium copper, and both the contact and shield terminations are solder type (solder cup for contact, solder for shield). The housing is silver in color and includes a three-lug feature.
The BJ72 is a single-port connector suitable for applications requiring reliable twinaxial or triaxial connections in a panel-mount configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.89 | $38.89 |
| 10+ | $33.06 | $33.06 |
| 30+ | $30.59 | $30.59 |
| 50+ | $29.51 | $29.51 |
| 100+ | $28.10 | $28.10 |
| 250+ | $26.34 | $26.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
TRB (Twinaxial/Triaxial) jack with female socket (concentric).
Panel mount with bulkhead rear side nut.
500 MHz.
Solder cup for the contact and solder for the shield.
Beryllium copper.
