| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

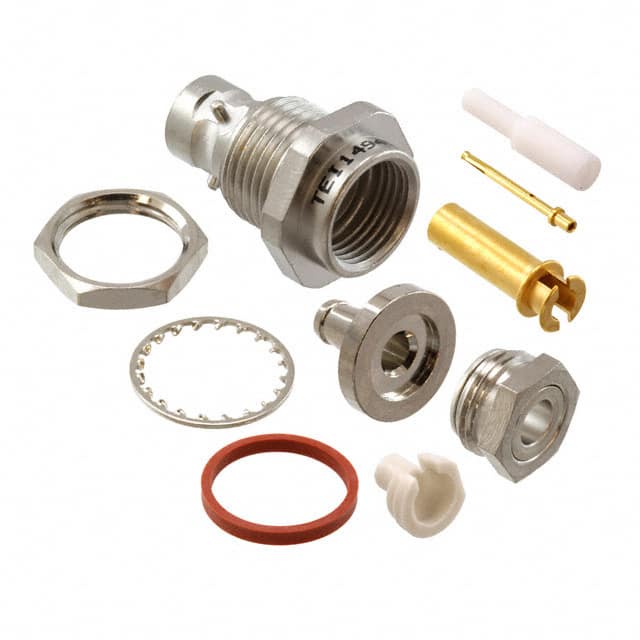

The Cinch BJ159-47 is a TRS (Twinaxial/Triaxial) connector designed for bulkhead mounting. It features a female socket (concentric) contact and a bayonet lock fastening mechanism. The connector is panel mounted with a bulkhead front side nut mounting feature. It has a single port and is designed for use with cable group M17/176-00002. The contact termination is solder, while the shield termination is a wrench clamp. The center contact is made of beryllium copper and the housing is silver in color. The connector includes a three-lug feature. It operates at frequencies up to 500 MHz with non-constant impedance. This connector is suitable for applications requiring reliable RF connections in various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $80.18 | $80.18 |
| 10+ | $68.15 | $68.15 |
| 30+ | $63.07 | $63.07 |
| 50+ | $60.84 | $60.84 |
| 100+ | $57.94 | $57.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount with bulkhead front side nut.
TRS (Twinaxial/Triaxial).
Jack, female socket (concentric).
Bayonet lock.
Up to 500 MHz.
Solder.
M17/176-00002.
