| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

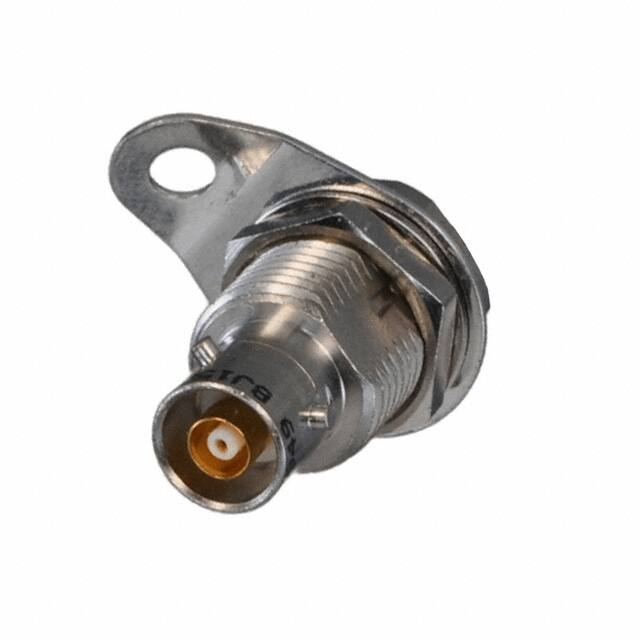

The Cinch BJ150 is a TRS (Twinaxial/Triaxial) jack, female socket coaxial connector designed for panel mount applications. It features a bulkhead front side nut mounting feature and a bayonet lock fastening type for secure connections.
This connector uses solder cup contact termination and a solder tag shield termination. The center contact is made of beryllium copper. It is rated for a frequency of 500 MHz with non-constant impedance and includes a three-lug feature.
The housing is silver in color. The BJ150 is part of the TRS series from Cinch Connectivity Solutions, suitable for RF and microwave interconnect needs.
Panel mount with bulkhead front side nut.
Bayonet lock.
500 MHz.
Solder cup for contact termination and solder tag for shield termination.
Non-constant.
Beryllium copper.
