| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Failure Rate | |
| Frequency | |
| Frequency Range | |
| Function | |
| Interface Type | |
| Maximum RF Operating Frequency | |
| Maximum power dissipation | |
| Mounting Type | |
| Number of Receivers | |
| Number of Transmitters | |
| Operating Temperature (Minimum/Maximum) | |
| Output Power | |
| Package Configuration | |
| Package Height | |
| Package Length | |
| Package Width | |
| RF Type | |
| Sensitivity | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current Receiving | |
| Supply Current Transmitting | |
| Supply Voltage | |
| Technology | |
| Type |
The Infineon Technologies BGT24MTR11E6327XUMA1 is a Silicon Germanium (SiGe) Monolithic Microwave Integrated Circuit (MMIC) transceiver designed for general-purpose RF applications.
This device operates within a frequency range of 24 GHz to 26 GHz, with a maximum RF operating frequency of 24250 MHz. It offers an output power of 11 dBm and a sensitivity of 4.5 mV/K. The transceiver requires a typical operating supply voltage between 3.135 V and 3.465 V, with a transmitting and receiving current consumption of 150 mA each.

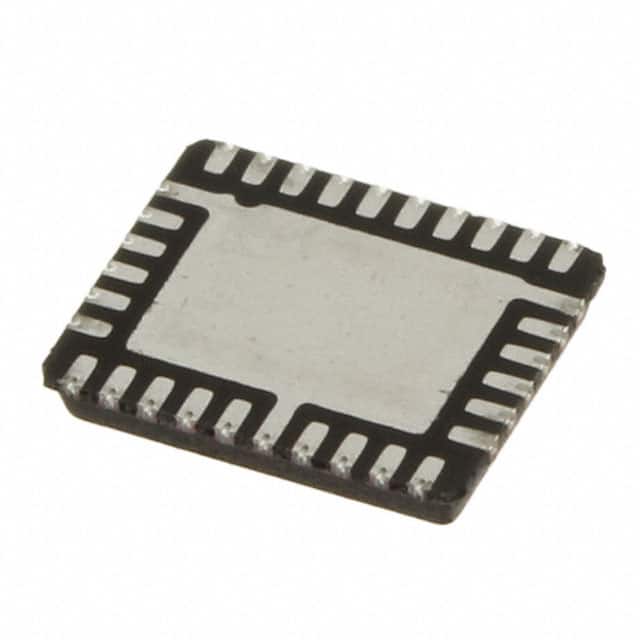

Packaged in a 32-PowerVFQFN (PG-VQFN-32-9) with surface mount technology, the BGT24MTR11E6327XUMA1 has dimensions of 4.5 mm x 5.5 mm x 0.85 mm. It is designed for operation across a wide temperature range of -40 °C to 105 °C. The component features an SPI interface and is suitable for radar applications.
Compliance information indicates RoHS3 compliance, REACH unaffected status, and an MSL rating of 3 (168 Hours).
| Qty | Low | High |
|---|---|---|
| 1+ | $27.44 | $27.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 24 GHz to 26 GHz.
The output power is 11 dBm.
The typical operating supply voltage is between 3.135 V and 3.465 V.
It is supplied in a 32-PowerVFQFN package.
The operating temperature range is -40 °C to 105 °C.
The interface type is SPI.
