BGB741L7ESD
Infineon
The Infineon BGB741L7ESD is a high-performance broadband low noise amplifier (LNA) MMIC. It operates over a frequency range of 50 MHz to 3.5 GHz.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,480 pcs
|
1480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| ESD Protection | |
| Noise Figure | |
| Supply Voltage |
The Infineon BGB741L7ESDE6327XTSA1 is a general-purpose, pre-matched Low Noise Amplifier (LNA) MMIC designed for applications operating from 50 MHz to 3.5 GHz. Built on Infineon's silicon germanium carbon (SiGe:C) bipolar technology, this MMIC offers a minimum noise figure of 1.05 dB at 2.4 GHz, 3 V, and 10 mA.
Key electrical characteristics include a supply voltage range of 1.8 V to 4.0 V and high RF input power robustness up to 20 dBm. Integrated ESD protection is provided at all pins, rated at 2 kV HBM. The device is qualified for industrial applications according to JEDEC standards.
Potential applications span satellite navigation systems (GPS, GLONASS, BeiDou, Galileo), wireless communications such as WLAN (2.4 GHz and 5-6 GHz bands), broadband LTE, WiMAX, and ISM applications like RKE and smart meters. It is also suitable for emerging wireless applications like DVB-Terrestrial.

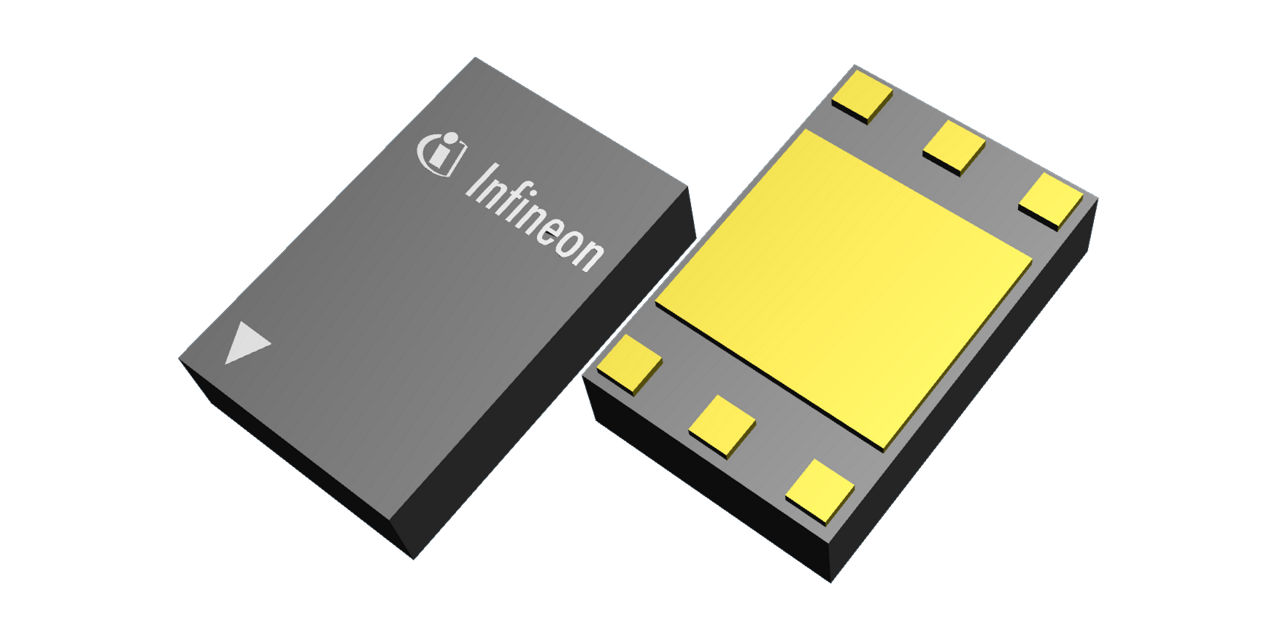

The BGB741L7ESDE6327XTSA1 comes in a TSLP-7-1 package. It is sensitive to electrostatic discharge and requires appropriate handling precautions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.02 | $1.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum noise figure is 1.05 dB at 2.4 GHz, 3 V, and 10 mA.
The supply voltage range is 1.8 V to 4.0 V at 25 °C.
The RF input power robustness is 20 dBm.
Yes, it has integrated ESD protection rated at 2 kV HBM at all pins.
This MMIC covers a frequency range from 50 MHz to 3.5 GHz.
It is supplied in a TSLP-7-1 package.
There are 7500 pieces per reel.
