Mfr Part #:

BGB741L7ESD

Mfr Name: Infineon

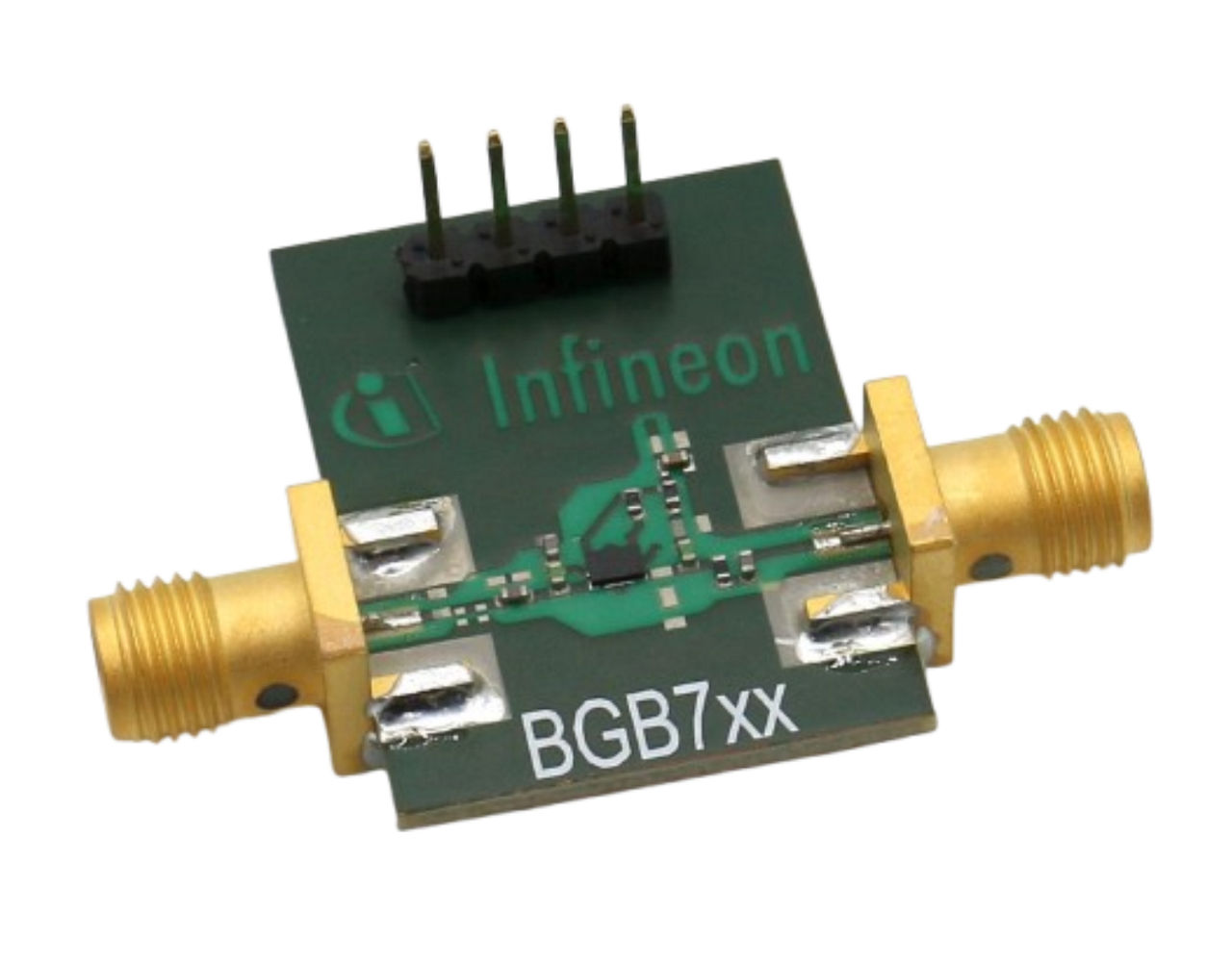

The Infineon BGB741L7ESD is a high-performance broadband low noise amplifier (LNA) MMIC. It operates over a frequency range of 50 MHz to 3.5 GHz.

✓ Total Stock: 2,500 pcs

$ Price Range: $0.24

BGB741L7ESD Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	2,500 pcs On Request	2500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BGB741L7ESD Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Approval Agency	50 MHz - 3.5 GHz
ESD Protection	2 kV HBM
Lead Style	Gull Wing
Noise Figure	1.05 dB
SVHC Present	Not Present
Supply Voltage	1.8 to 4.0 V

View Similar Products (0)

BGB741L7ESD Description

Short technical summary and product information.

The Infineon BGB741L7ESD is a silicon germanium carbon (SiGe:C) bipolar technology-based low noise amplifier (LNA) MMIC. It is designed for general-purpose applications within the 50 MHz to 3.5 GHz frequency range.

Key electrical characteristics include a minimum noise figure of 1.05 dB at 2.4 GHz (measured at 3 V and 10 mA), a supply voltage range of 1.8 V to 4.0 V at 25 °C, and high RF input power robustness of 20 dBm. The device also features integrated ESD protection rated at 2 kV HBM across all pins.

This MMIC is qualified for industrial applications according to JEDEC standards. Potential applications include satellite navigation systems (GPS, GLONASS, BeiDou, Galileo), wireless communications such as WLAN (2.4 GHz and 5-6 GHz bands), LTE, WiMAX, and ISM applications like remote keyless entry (RKE) and smart meters.

The BGB741L7ESD is supplied in a TSLP-7-1 package. It is suitable for surface mounting.

BGB741L7ESD Quick Information

Product Type: Low Noise Amplifier MMIC

Series: BGB741

Canonical Name: BGB741L7ESD Low Noise Amplifier MMIC

Subcategory: Low Noise Amplifier (LNA) MMIC

BGB741L7ESD Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

BGB741L7ESD Estimated Pricing

Qty	Low	High
1+	$0.24	$0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

BGB741L7ESD Features

Minimum noise figure of 1.05 dB at 2.4 GHz.
Wide supply voltage range from 1.8 V to 4.0 V.
High RF input power robustness of 20 dBm.
Integrated 2 kV HBM ESD protection.
Suitable for 50 MHz to 3.5 GHz applications.

BGB741L7ESD Applications

Ideal for satellite navigation systems.
Used in WLAN 2.4 GHz and 5-6 GHz bands.
Applicable for LTE and WiMAX systems.
Suitable for ISM applications like RKE.
Supports emerging DVB-Terrestrial applications.

BGB741L7ESD FAQs

7 frequently asked questions generated from this part’s specifications.

What is the minimum noise figure for the BGB741L7ESD?

The minimum noise figure is 1.05 dB at 2.4 GHz, 3 V, 10 mA.

What is the supply voltage range for the BGB741L7ESD?

The supply voltage range is 1.8 to 4.0 V at 25 °C.

What is the RF input power robustness of the BGB741L7ESD?

The RF input power robustness is 20 dBm.

Does the BGB741L7ESD have integrated ESD protection?

Yes, it has integrated ESD protection of 2 kV HBM at all pins.

What is the operating frequency range of the BGB741L7ESD?

The operating frequency range is 50 MHz to 3.5 GHz.

What package type is the BGB741L7ESD supplied in?

The BGB741L7ESD is supplied in a TSLP-7-1 package.

What is the RoHS status of the BGB741L7ESD?

The RoHS status is RoHS3 Compliant.
