| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,000 pcs
|
42000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Junction Temperature | |
| Mounting Type | |
| Power Dissipation | |
| SVHC Present | |
| Storage Temperature |

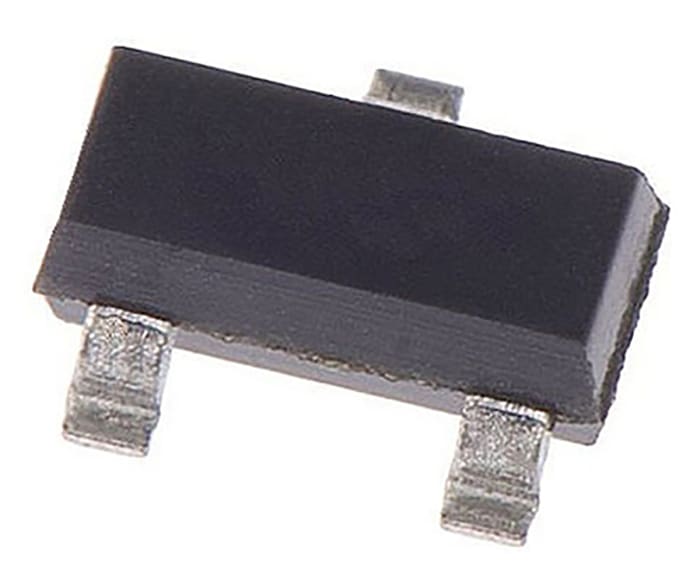

The Nexperia BFS19 is an NPN medium frequency transistor designed for applications in thick and thin-film circuits. It comes in a compact SOT23 plastic package, making it suitable for surface mounting.
Key electrical characteristics include a maximum DC collector current of 30 mA and a maximum collector-emitter voltage (VCEO) of 20 V. The transistor also has a maximum collector-base voltage (VCBO) of 30 V and a maximum emitter-base voltage (VEBO) of 5 V. Its maximum power dissipation is rated at 250 mW at an ambient temperature of 25 °C, assuming it is mounted on an FR4 printed-circuit board.
The operating ambient temperature range for the BFS19 is from -65 °C to 150 °C, with a storage temperature range also spanning -65 °C to 150 °C. The junction temperature is limited to 150 °C.
This transistor is ideal for medium frequency applications where a small, reliable component is required. Its SOT23 package facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 mA.
20 V.
250 mW.
-65°C to 150°C.
SOT-23 surface mount package.
30 V.
5 V.
