Mfr Part #:

BCP68-25

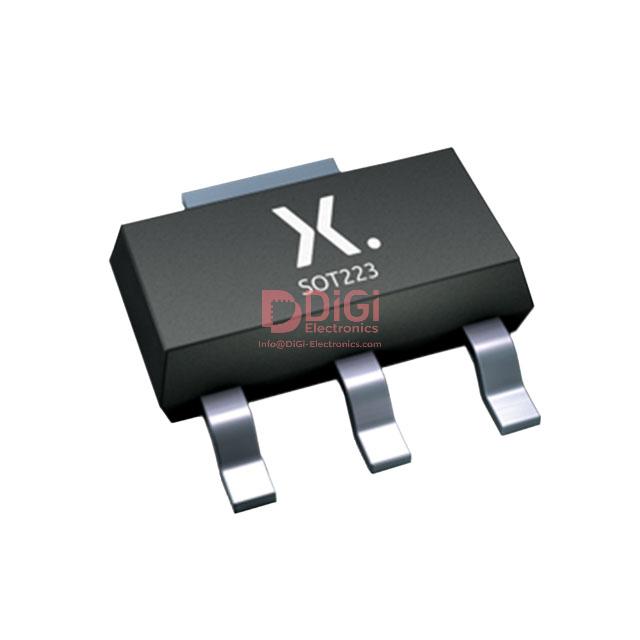

The Nexperia USA Inc. BCP68-25 is an NPN bipolar junction transistor. It offers a 20V collector-emitter breakdown voltage and a maximum collector current of 2A.

✓ Total Stock: 50,320 pcs

$ Price Range: $0.09

BCP68-25 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	50,155 pcs On Request	50155 pcs	On Request	1	On Request	On Request	21+20+	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	165 pcs On Request	165 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

BCP68-25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Nexperia USA Inc.
Halogen Free	No
Mounting Type	Surface Mount
Power Dissipation	650 mW
SVHC Present	Not Present
Tape & Reel	Tape & Reel
Transistor Type	NPN

View Similar Products (0)

BCP68-25 Description

Short technical summary and product information.

The Nexperia USA Inc. BCP68-25 is a single NPN bipolar junction transistor designed for surface mount applications. It features a collector-emitter breakdown voltage of 20V and can handle a maximum collector current of 2A.

This transistor operates with a maximum power dissipation of 650mW and has a transition frequency of 170MHz. The Vce saturation is specified at 600mV with a collector current of 2A and base current of 200mA. Its DC current gain (hFE) is a minimum of 160 at 500mA collector current and 1V collector-emitter voltage.

The BCP68-25 comes in a SOT-223 package, suitable for surface mounting. The component is listed with a RoHS3 compliant status, MSL 1 Unlimited, and REACH Unaffected status, though these compliance details are unverified.

This component is part of the broader category of discrete semiconductor products, specifically single bipolar junction transistors.

BCP68-25 Quick Information

Product Type: Bipolar Junction Transistor

Canonical Name: NPN Bipolar Junction Transistor

Subcategory: Bipolar (BJT) - Single

BCP68-25 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

BCP68-25 Estimated Pricing

Qty	Low	High
1+	$0.09	$0.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

BCP68-25 Features

NPN bipolar junction transistor.
20V collector-emitter breakdown voltage.
2A maximum collector current.
170MHz transition frequency.
SOT-223 surface mount package.

BCP68-25 Applications

General purpose switching and amplification.
Medium speed switching circuits.
Linear amplifier driver stage.
Driver for low-power loads.

BCP68-25 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum collector current of the BCP68-25?

The maximum collector current is 2 A.

What is the collector-emitter breakdown voltage of the BCP68-25?

The collector-emitter breakdown voltage is 20 V.

What is the package type for the BCP68-25?

The BCP68-25 is available in a SOT-223 surface-mount package.

What is the power dissipation of the BCP68-25?

The maximum power dissipation is 650 mW.

What is the transition frequency of the BCP68-25?

The transition frequency is 170 MHz.
